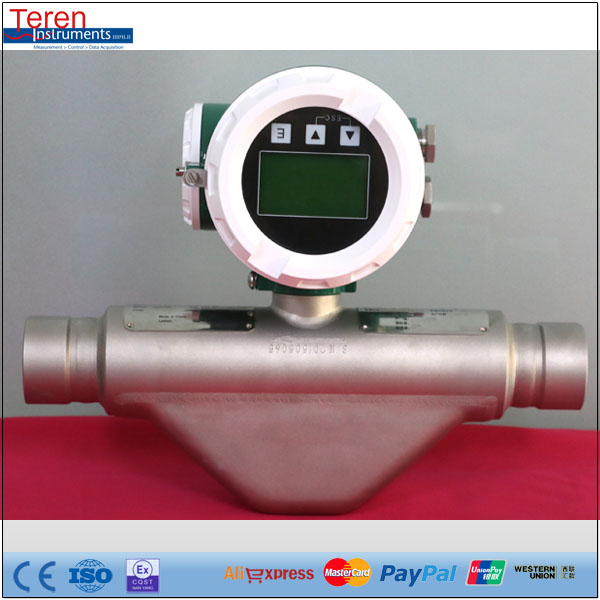

Air coriolis mass flow meter

Technical Parameters

Specification AMF050

Nominal diameter DN50 (2 inch)

Max flow rate 1000Kg/min

Working pressure <=4MPa (580 Psi)</p>

Accuracy level

(customizable) 0.15 ,0.2 ,0.5 , 1.0 optional

Density: 0.001g/cm

Repeatability 0.075% ,0.1% ,0.25% ,0.5% optional

Measuring medium Liquid / Gas / Multiphase flow

Output signal Current 4~20mA / Pulse / Modbus RS485

Current output Passive: 4~20mA (Active: DC 15~36V)

Pulse output signal 1~10000Hz, representative flow rate,electrical level 0~12VDC,load>=2kOU

When the flow rate is zero, the pulse output frequency is 0 Hz.

The rated pulse output frequency under rated flow rate can be set by the user.

Modbus RS485 The default baud rate of RS-485 is 38400bit/s.

Power supply AC/DC 15~36V

Ambient temperature -40C~+70C

Medium temperature -196C~+100C

Related humidity <=95%</p>

Measuring pipe material 304, 304L, 316, 316L, Babbitt alloy

Connection mode

(customizable) Flange / Screw thread optional

The explosive-proof mark Exdib IIB T5 Gb
