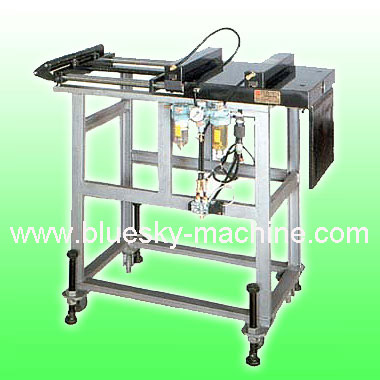

Air feeder AF-8C
air feed is a cost effective entry level feeding system offered in a full range of sizes and capacities.
Standard feature for air feeder
· Optional "Air Saver" cylinders
· Hand crank stroke adjustment
· Heavy duty guide bars
· High strength aluminum gripper assembly
· Press interface controls.
Optional Features:
· Pull-through straighteners
· Power threading rolls
· Remote jog control
· Heavy-duty bases
Air feeder specs:
|
Model |
AF-1C |
AF-2C |
AF-3C |
AF-4C |
AF-5C |
AF-6C |
AF-7C |
AF-8C |
AF-9C |
AF-10C |
AF-11C |
|
Max.feeding width(mm) |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
|
Max.feeding length(mm) |
50 |
80 |
80 |
130 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
|
Material thickness(mm) |
0.5 |
0.8 |
1.2 |
1.5 |
2 |
2 |
2.5 |
2.5 |
3 |
3 |
3 |
|
Air pressure |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
4.5 |
|
Max.feeding S.P.M. |
250 |
200 |
180 |
130 |
100 |
70 |
50 |
45 |
35 |
30 |
25 |
|
Fixed clamp friction(kg) |
10 |
27 |
40 |
55 |
78 |
78 |
90 |
100 |
119 |
119 |
119 |
|
Moving clamp friction(kg) |
30 |
49 |
65.5 |
72.5 |
144.5 |
169 |
200 |
217 |
220 |
245 |
345 |
|
Tension force(kg) |
14 |
16.5 |
19.5 |
25.5 |
41 |
41 |
67 |
74 |
77 |
85 |
85 |
|
Air consumption (L/mm) |
26.5 |
38.5 |
47 |
58.6 |
100.5 |
108.5 |
152 |
162.5 |
174.2 |
182.5 |
170.5 |
|
Weight(kg) |
8.8 |
9.6 |
12.8 |
19.6 |
38.4 |
52.4 |
80 |
95 |
156 |
178 |
200 |
|
Size(mm3) |
321X38X92 |
373X38X110 |
380X46X130 |
524X46X157 |
603X60X220 |
768X68X280 |
867X70X330 |
1146X95X360 |
1246X95X410 |
1314X95X460 |
1414X95X510 |
Note: The data above is your reference only,if any changes without notice.
