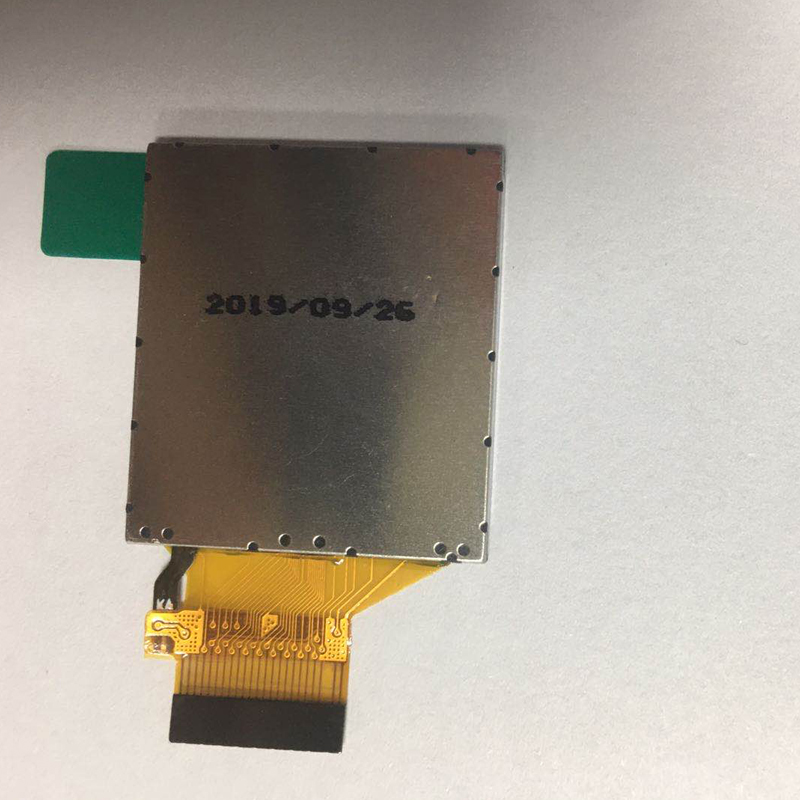

All View Angle 1.3 Inch 240x240 Square TFT LCD Screen
Kingtech 1.3inch 240x240 LCD module is a small size display. It's IPS/full/wide/all type and this display supports MCU and SPI interfaces.
The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD module according to customer requirements. This 1.3 inch tft lcd, 1.3 inch lcd can be used for smartwatch.
Features of All View Angle 1.3 Inch 240x240 Square TFT Custom LCD Screen
240x240 resolution
Square display
Can custom capacitive and TFT resistive touchscreen
MCU and SPI interfaces
Free/full/wide viewing angle
IPS TFT display
Application is for a smartwatch
Specification of All View Angle 1.3 Inch 240x240 Square LCD Screen
|
Item |
1.3inch IPS square TFT display |
|
Model No |
PV013004AR24E |
|
Resolution |
240x240 |
|
Outline Dimension |
26.16(W)x29.22(H)x1.6(T) |
|
Active Area(mm) |
23.40(W)x23.40(H) |
|
Interface |
8bit parallel & SPI |
|
Viewing Angle |
All |
|
Driving IC |
ST7789 |
|
Display Mode |
Transmission/Normally Black |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Brightness |
350nits |
|
Touch panel |
Can custom resistive and capacitive touch panel |
Application of All View Angle 1.3 Inch 240x240 Square TFT LCD Screen
The 1.3inch 240x240 round TFT IPS LCD display can be used for medical devices, handheld equipment, industrial control, smart home, and smartwatch.
As a custom lcd display manufacturer, we will provide more sorts of related products for sale, anything you need, please contact us.
