Aluminium Core PCB
Prix : 30-210 USD

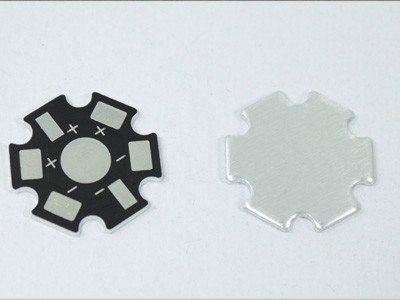

Aluminium Core PCB is a metal-based copper clad laminate with good heat dissipation function. Generally, the single panel is composed of a three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. Also used for high-end use is designed as a double panel, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. A very small number of applications are multi-layer boards, which can be made of ordinary multi-layer boards combined with an insulating layer and an aluminum base.
The LED Aluminium Core PCB is the PCB, which is also the meaning of the printed circuit board. The material of the circuit board is aluminum alloy. In the past, the material of our general circuit board was glass fiber, but because the LED heat is large, the circuit board for LED lamps is generally Aluminum substrate, capable of fast heat conduction.
Aluminium Core PCB Characteristics
With good thermal conductivity, electrical insulation performance and machinability, the aluminum core board has the same thickness and the same line width compared with the conventional FR-4. The Aluminium Core PCB can carry higher current and the Aluminium Core PCB can withstand voltage. 4500V, thermal conductivity greater than 2.0, mainly based on Aluminium Core PCB in the industry
Extremely efficient treatment of thermal diffusion in circuit design;
Reduce product operating temperature, increase product power density and reliability, and extend product life;
Reduce product size and reduce hardware and assembly costs;
Replace the fragile ceramic substrate for better mechanical durability.
Aluminium Core PCB plates are commonly used for aluminum substrates, mainly including 1000 series, 5000 series and 6000 series.
PCBSky Aluminum PCB Board Capacity
Solder mask color : White , Black , We can provide super white color for Led PCB to improve the Led lumen.
The Following Table Presents Some of Our Aluminum Core Materials:
Items |
Performance Index (Measured value) |
Peeling strength (n/mm) |
1.8 |
Insulation resistance (ω) |
>1*10 g |
Breakdown voltage (vdc) |
>2 k |
Soakable soldering (℃/m) |
280℃ / 260℃, 1 min, no bubble & delamination |
Thermal conductivity (ω/m-k) |
>0.8 |
Thermal resistance (℃/ω) |
<1.2</span> |
Combustibility |
fv-o |
Dielectric constant (1mhz) |
4 |
Dielectric loss angle (tangent) |
0.03 |
Check our Aluminum core PCB manufacturing capabilities in the following table:
Feature |
Capability |
Quality Grade |
Standard IPC 2 |
Number of Layers |
4 - 24layers |
Order Quantity |
1pc - 10000+pcs |
Build Time |
2days - 5weeks |
Material |
Aluminum core (Domestic 1060), Copper core, FR4 covering |
Board Size |
Min 6*6mm | Max 610*610mm |
Board Thickness |
0.8mm - 5.0mm |
Copper Weight (Finished) |
0.5oz - 10.0oz |
Min Tracing/Spacing |
4mil/4mil |
Solder Mask Sides |
As per the file |
Solder Mask Color |
Green, White, Blue, Black, Red, Yellow |
Silkscreen Sides |
As per the file |
Silkscreen Color |
White, Black, Yellow |
Surface Finish |
HASL - Hot Air Solder Leveling |
My Annular Ring |
4mil |
Min Drilling Hole Diameter |
6mil |
Other Techniques |
Countersink holes |
PCBSky can produce 1 Layer, 2 Layer, 4 Layer and 6layer Aluminum PCB. Multilayer aluminum PCB board is mainly used by high power industria products ,Like outdoor Led screen.
