Aluminium I Beam
Quantité : 800 ton pe Prix : According to differe

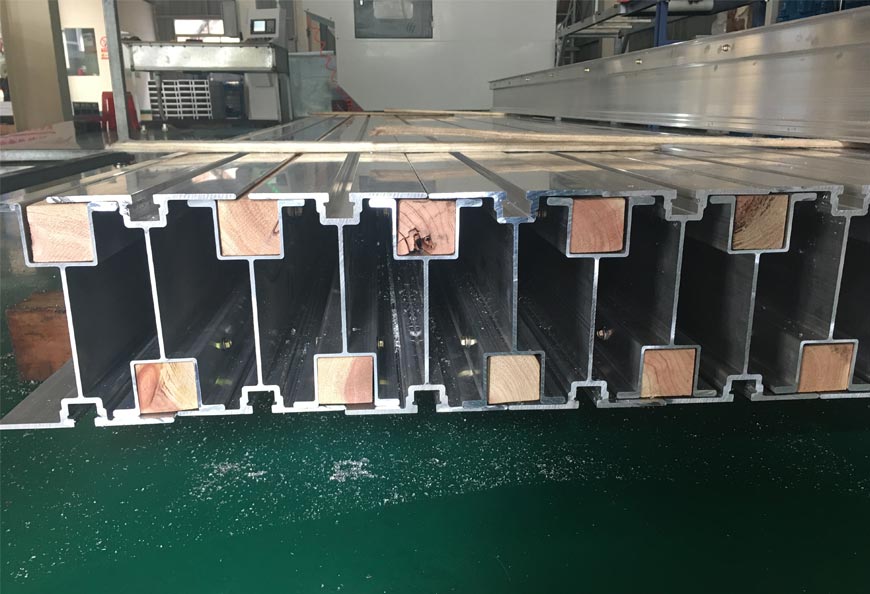

TECON aluminum beam is developed in eight types of H beam which can be used as main beam and secondary beam during construction. High strength and light weight make aluminium beam gets more and more popular in multiple projects.
Features of Aluminium I Girder
Higher strength-to-weight ratio than steel or wood
Long life service and light weight
Multiple applications in most of system formwork
Wood or rubber filler ensures compatible with plywood
Specification of Aluminium I Beam
|
Section |
Description |
Size |
Material |
Unit weight |
|
|
Aluminum Beam T114 |
Width: 85mm; Height: 114mm |
6005-T5/6061-T5 |
2.6 |
|
|
Aluminum Beam T120 |
Width: 85mm; Height: 120mm |
6005-T5/6061-T5 |
2.9 |
|
|
Aluminum Beam T123 |
Top Width: 60mm; Bottom: Width: 75mm Height: 123mm |
6005-T5/6061-T5 |
2.5 |
|
|
Aluminum Beam T140 |
Top Width: 65mm; Bottom: Width: 85mm Height: 140mm |
6005-T5/6061-T5 |
3.3 |
|
|
Aluminum Beam T150 |
Width: 90mm; Height: 150mm |
6005-T5/6061-T5 |
4.4 |
|
|
Aluminum Beam T165 |
Top Width: 81mm; Bottom: Width: 127mm Height: 165mm |
6005-T5/6061-T5 |
4.5 |
|
|
Aluminum Beam T200 |
Width: 76mm; Height: 200mm |
6005-T5/6061-T5 |
5.1 |
|
|
Aluminum Beam T225 |
Width: 100mm; Height: 165mm |
6005-T5/6061-T5 |
8.3 |
Application of Aluminium I Beam
As main and secondary girder of shear wall, slab and column formwork
Related Product of Aluminium I Beam
H20 timber beam, TECON-Formwork Film Faced Plywood, Heavy Duty Steel Prop
Personne à contacter : Chow Edgar, 0086 (0)512 65650586
