Aluminium rewinding machine

Product Description

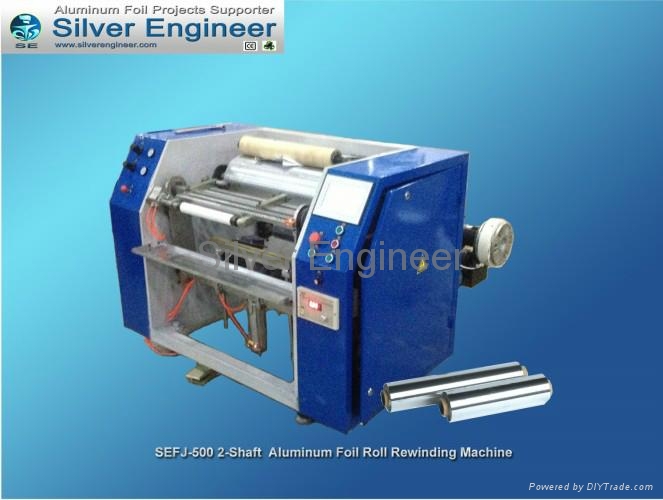

SEFJ-500 Semi Auto Household Foil Rewinding Machine
Auto deviate adjust by moto, could adjust to right and left 2cm;
Manual paper core loading, gluing;
Auto cross-cutting, slitting(margin) and rewinding of foil rolls;
Adopt the Japan PLC/Inverter/Touch Screen Control System;
Complete with meter cutting length control;
High productivity and user-friendly;
Complete with all safety features ;

Technical Data:
Aluminium foil thickness: 0.008mm to 0.03mm
Aluminum foil width:100 - 500mm
Maximum unwind roll diameter: 500mm
Unwind Core Diameter: 76mm or 152mm
Rewind Core Diameter: 24mm, 30mm, 38mm, 50mm etc.
Rewind Paper Core Thickness: bigger than 2mm
Cross-cutting length per roll: 2m to 500m
Production Speed: 2-8 rolls/minute
Magnetic Powder Braker: 5KG
Magnetic Powder Clutch: 5KG
Total Power: 4KW
Weight of machine: 650kg
Dimension of machine: 1350mm x 1100mm x 1000mm.

This model of Rewinder fit for Heavy Duty Rolls production, as Automatic Rewinder use for heavy duty have no any advantage than this.
