Aluminium Unequal Angles
Quantité : 150000 ton Prix : USD 2500/T to USD 35

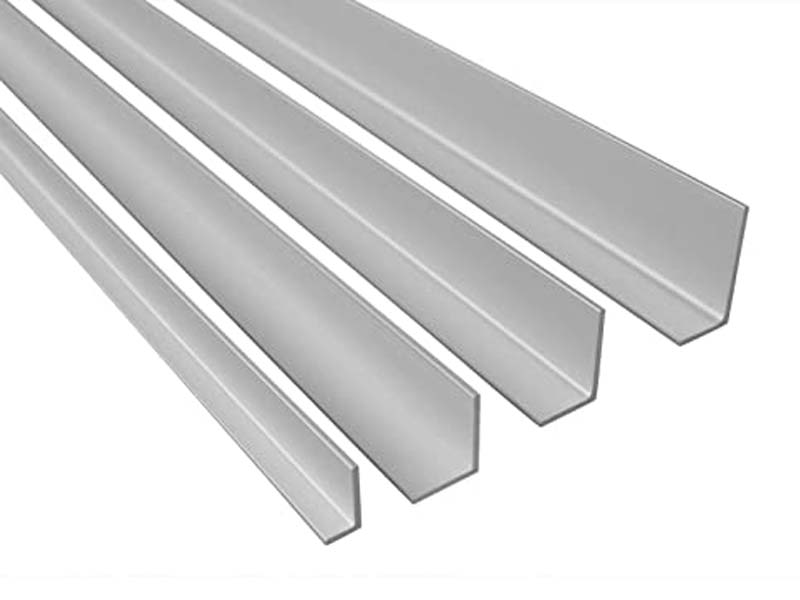

Aluminium unequal angle is "L-shape" extruded profiles with legs of unequal lengths and equal thickness.
In Otalum, we offer a wide range of aluminum angle unequal legs, as well as the aluminium equal angle, with a variety of alloys, sizes, metics and finishes. All of our aluminium unequal angles can be cut to a specific size if these existing products cannot meet your requirement.
If you want to know more about aluminum unequal angle sizes, please visit our website.
Precise cutting to length and processing services are available with the fastest lead time.
Features of Aluminium Unequal Angles
|
Alloy |
Standard |
Surface Treatment |
Further Process |
Certificate |
|
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. |
GB 5237-2008, JISH, AAMA, GB, BS, En |
Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc. |
Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. |
CE, DNV, TUV, ISO9001 |
Specifications of Aluminium Unequal Angles
B=length, mm
T=thickness, mm
H=height, mm
Weight(kg/m)
|
Item |
B |
H |
T |
Weight(kg/m) |
|
ZY-236-G1004 |
9.53 |
12.7 |
1.45 |
0.081 |
|
BK31 |
12 |
10 |
1.6 |
0.089 |
|
ARC011 |
15 |
10 |
1 |
0.065 |
|
3305-1.0 |
18 |
12 |
1 |
0.078 |
|
CF5055 |
18 |
13 |
1.5 |
0.119 |
|
AN19X10X2.0 |
19 |
10 |
2 |
0.146 |
|
AZ809 |
19.05 |
12.7 |
1.59 |
0.13 |
|
AN20X9.2X2.0 |
20 |
9.2 |
2 |
0.147 |
|
ARC012 |
20 |
10 |
1 |
0.078 |
|
ZY-236-010 |
20 |
10 |
1.25 |
0.097 |
|
AIC-ANO201214 |
20 |
12 |
1.4 |
0.116 |
|
AI-9323 |
20 |
12 |
1.5 |
0.126 |
|
AN2012 |
20 |
12 |
1.6 |
0.132 |
|
ZY-480-845 |
20 |
15 |
1.5 |
0.137 |
|
AN20X15X2.0 |
20 |
15 |
2 |
0.18 |
As one of aluminum extrusion profiles suppliers, we have types of related products for sale, if you have needs, please contact us.
