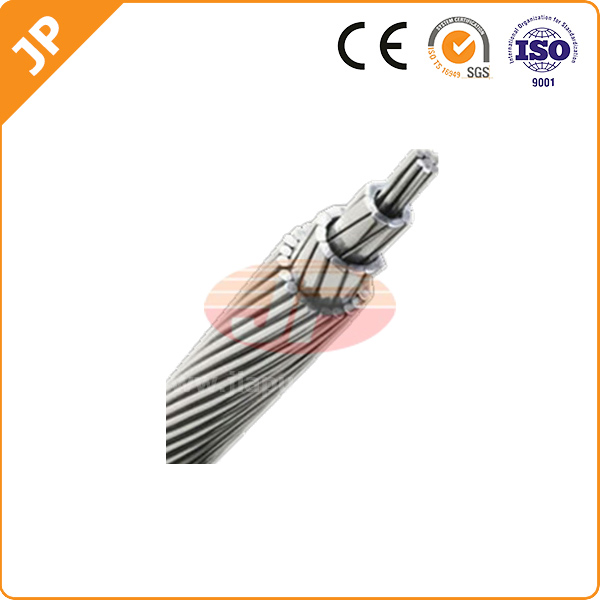

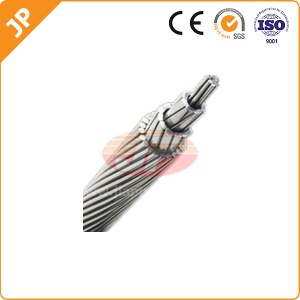

Aluminum Conductor Alloy Reinforced (ACAR)
Application
The aluminum conductor alloy reinforced (ACAR) is an excellent conductor choice where current carrying capacity, higher strength and a lower conductor weight are critical to the line design.
Property
- improved strength to weight ratio
- better mechanical properties
- improved electrical characteristics
- excellent resistance to corrosion
Specification
Construction
The aluminum conductor alloy reinforced (ACAR) has concentrically stranded aluminum 1350-H19 wire around a 6201-T81 aluminum alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H19 and the 6201-T81 wires may be stranded in the same layer.
Standard of Production
- ASTM B524 Standard, refer to the following specification
B 230 Aluminum Wire 1350-H 19 for Electrical Purpose
B 398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose
B 524 Concentric-lay-stranded Aluminum Conductor, Aluminum Alloy Reinforced ACAR 1350/6201
- IEC 61089 Standard
3. Other International Standard
Code
ASTM B524 |
KCMIL or AWG: 30.6 4 48. 7 2 77.5 1/0 123.3 2/0 155.4 3/0 195.7 4/0 246.9 250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1100 1200 1250 1300 1400 1500 1600 1700 1750 1800 1900 2000 2250 2750 3000 |
IEC 61089 |
sq.mm: 16 25 40 63 100 125 160 200 250 315 400 450 500 560 630 710 800 900 1000 1120 1250 1400 |
