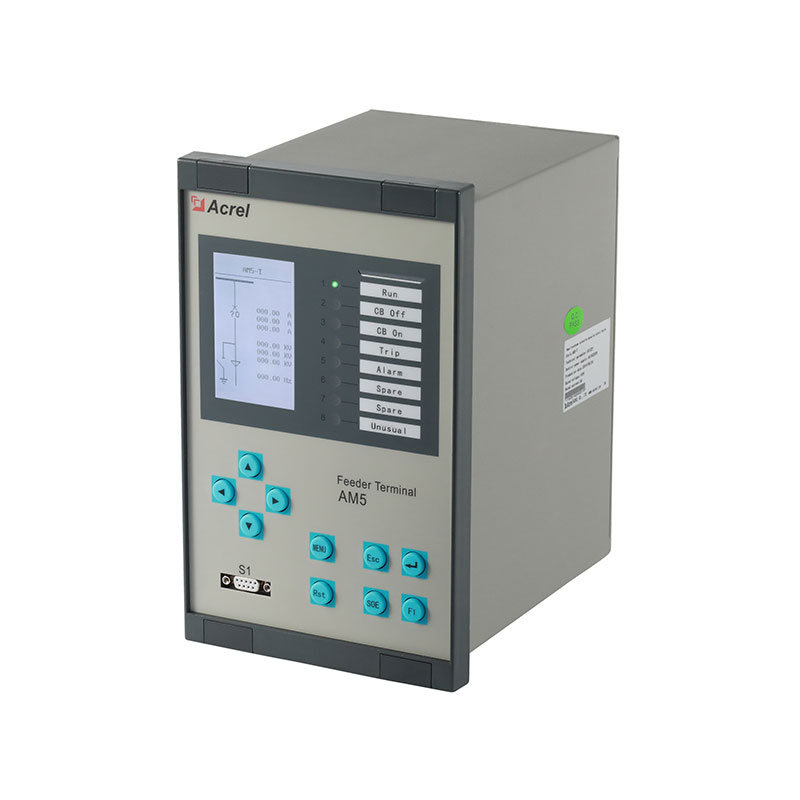

AM5 Medium Voltage Motor Protection Relay
AM5 Medium Voltage Protection Relays
Acrel middle voltage protection relay has the protection functions of power distribution system such as line protection, transformer protection, motor protection, capacitor protection, bus tie/incoming line backup automatic switching, etc. AM series undervoltage relay provide guarantee for the reliable and stable operation of the power supply and distribution system.
Technical Parameter of AM5 Medium Voltage Motor Protection Relay
|
Auxiliary power supply |
Rated input |
AC220V/DC220V,DC110V,DC48V |
|
Range |
Rated Voltage*(1±20%) |
|
|
Power consumption |
≤10W（DC） |
|
|
Rated voltage |
Rated input |
AC100V |
|
Range |
1~120V |
|
|
Accuracy |
±0.5% |
|
|
Power consumption |
≤0.5VA |
|
|
Rated current |
Rated input |
AC5A/1A |
|
Range |
0.04ln~15ln |
|
|
Accuracy |
±0.5% |
|
|
Power consumption |
≤0.5VA |
|
|
Frequency |
Rated frequency |
50Hz or 60Hz |
|
Range |
45Hz~55Hz or 60Hz |
|
|
Accuracy |
±0.1Hz |
|
|
Environment |
Temperature |
-10℃~55℃ |
|
Humidity |
5%~95% |
|
|
Altitude |
≤4000m |
|
|
Insulating property |
Insulation resistance |
＞100MΩ |
|
Dielectric strength |
Power frequency voltage withstand 2kV |
|
|
Impulse voltage |
±5kV |
Established in 2003, Acrel meter is a high-tech enterprise concentrating on research, production, sales, and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. "Acrel" is equipped with complete production lines from cloud platform software to sensors.
If you want to know more kinds of multi function energy meter, please visit our website.
