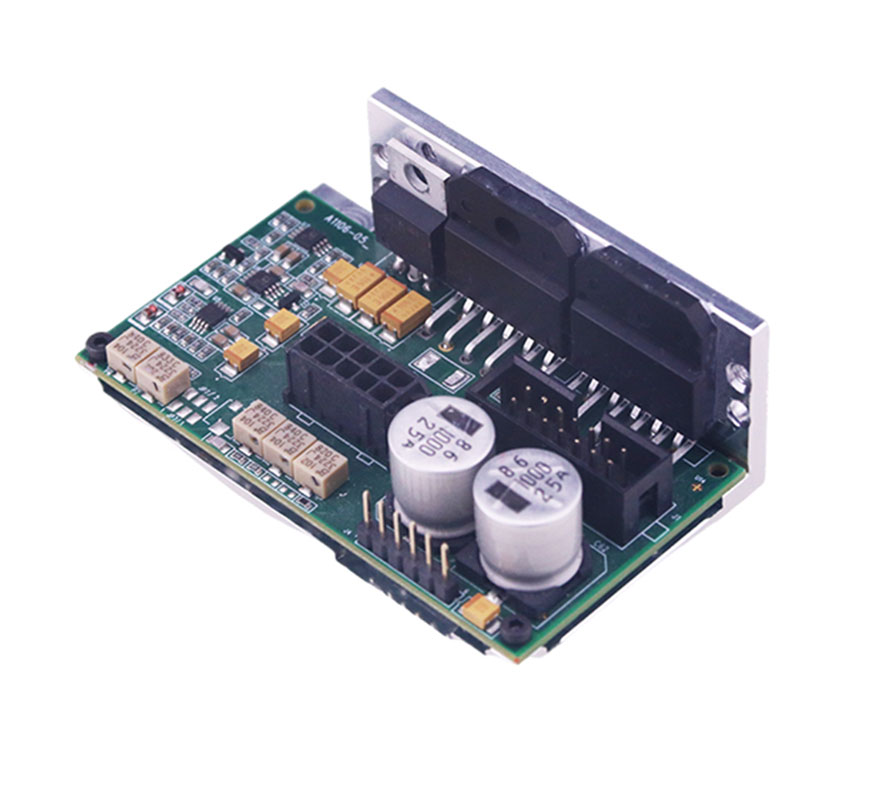

Analog Galvo Driver

Prix : 500—15000(USD)

Han's Scanner analog galvo driver board is designed for the full series of Han's Scanner photoelectric galvanometer motor, using the traditional PID closed-loop control mode, stable and reliable performance; with a variety of different configurations, support analog and digital signal input, a variety of different power amplifier devices can drive mirrors with different loads from 3mm-50mm to achieve optimal dynamic performance, to meet the speed and accuracy requirements of various high-end applications.

Key Features Of Analog Galvo Driver

3-in-1 analog driver board

Integrate DA card and analog driver board, compact size

TDA8950 D class work output, low heat

First generation galvo driver

More than 10 years in the market, stable performance

A driver board drives a galvanometer

LM3886 AB dual-power amplifier, maximum 68W+68W power output, strong driving capability

Second generation analog driver board

TDA8950 type D power amplifier output, low heat

A driver board drives a galvanometer, driving capacity is strong

TDA8950 power amplifier, maximum 150W+150W power output, strong driving ability

Improved speed performance by more than 50% compared to the first generation analog driver board.

Specifications Of Analog Galvo Driver

Analog Galvo Driver Electric Parameter

Power Supply Requirements

+/-15 to +/-28 VDC Configurations Available

Maximum Drive Current Limit

10 AMPS Peak

5 AMPS Rms (Power Supply And Load Dependent)

Operating Temperature Range

0～50℃

Connector Definition

Description

J2 (10pin) Of Driver ST16xx

GND

1

GND

2

GND

3

GND

4

POS1

5

MOTOR+

6

MOTOR-

7

GND

8

LED+

9

POS2

10

Description

J1 (2pin) Of Driver ST16xx

-

1

+

2

Description

J3 (4pin) Of Driver ST16xx

-15V

3

GND

2

+15V

4

NC

1

Description

J4 (10pin) Of Driver ST16xx

NC

1

POS_FB

2

GND

3

CMD_ERR

4

V_CRT

5

V_LED

6

NC

7

NC

8

1. Electronic Parameters

Power Supply Requirements

+/-15 to +/-28 VDC Configurations Available

Maximum Drive Current Limit

10 AMPS Peak

5 AMPS Rms (Power Supply And Load Dependent)

Operating Temperature Range

0～50℃

Connector Definition

Description

J2 (10pin) Of Driver Board ST16XX

Remark

GND

1

Power Ground

GND

2

Power Ground

GND

3

Power Ground

GND

4

Power Ground

POS1

5

Photocell Position Feedback Signal 1

MOTOR+

6

Motor Signal +

MOTOR-

7

Motor Signal -

GND

8

Power Ground

LED+

9

LED Positive Terminal

POS2

10

Photocell Position Feedback Signal 2

J1 Analog signal control port, communication through serial port

Description

J1 (2pin) Of Driver Board ST16XX

Remark

-

1

Analog Negative Signal Input (Pulse Signal)

+

2

Analog Positive Signal Input (Pulse Signal)

Description

J3 (4pin) Of Driver ST16xx

Remark

-15V

3

Negative Of Power Supply (Current 3A)

GND

2

Power Ground

+15V

4

Power Supply Positive Electrode (Current 3A)

NC

1

Suspend In Midair

Description

J4 (10pin) Of Driver Board ST16XX

Remark

NC

1

Suspend In Midair

POS_FB

2

Motor Position Feedback Signal

GND

3

Power Ground

CMD_ERR

4

Command Error

V_CRT

5

Motor Current Sampling Signal

V_LED

6

Motor LED Voltage

NC

7

Suspend In Midair

NC

8

Suspend In Midair

For more information about cost of galvanometer and buy scanning galvanometer, please feel free to contact us!
