Antenna Accessories
Antenna Accessories
Reliable and well-performed, Cowin antenna part accessories comform to the world standard. Having various Rf cables and connectors for sale, Cowin provides N-type connector cable, BNC connector cable, MCX connector cable, MMCX connector cable, SMA connector cable, SMB connector cable, IPEX Cable, Fakra cable and other customized connector cables. Please contact Cowin if you need any antenna parts or accessiries.
Types of Antenna Accessories
RF Cable
FAQs of Antenna Accessories
Q What should we be attention when the antenna is connected to the extension cable? A
One is the impedance matching between antenna and extension cable, the antenna input impedance should be equal to extension cable characteristic impedance; Second is that we should notice balance and imbalance.
Q Which types do RF extension cables have? A
Common coaxial wire are 50Ω 75Ω and 100Ω, the key is to choose extension cable thickness after select extension cable impedance, usually based on attenuation and RF extension cable cost.
Which kinds do common RF cable connectors have?
Common RF cable connectors are as follow:
N Type Connector: Applicable frequency range is DC-11GHz, with good mechanical properties, suitable for most RF cable.
BNC Connector: Applicable frequency range is DC-4GHz, with fast connection and separation, reliable connection, good earthquake resistance.
TNC Connector: Applicable frequency range is DC-11GHz, with screw connection, used for wireless equipment and test instruments to connect the coaxial cable.
SMA Connector: Applicable frequency range is DC-18GHz, subminiature, suitable for semi-rigid coaxial cable connection, the advantages of small size, superior performance, high reliability and long life, suitable for the microwave applications require high performance, such as the internal connection of microwave equipment.
MCX Connector: Applicable frequency range is DC-18GHz, subcompact, with fast connection and separation, low-cost advantages.
MMCX Connector: Applicable frequency range is DC-6GHz, ultra-small with fast connection and separation, high shielding performance.Can rotate 360° without interrupting the signal, suitable for intensive plate-to-plate, cable-to-plate, cable-to-cable applications.
Other Connector: Choose according to different structures and application scenarios.
Applications of Antenna Accessories

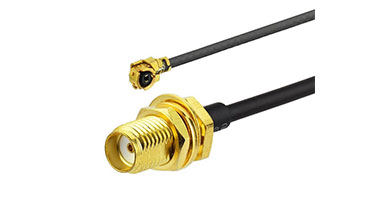

RF cables are a type of coaxial cable that is used to send radio frequency signals to terminal equipment, the different connector is connected by RF cable, such as SMA to IPEX cable, IPEX to IPEX cable, SMA to N cable, N to n cable, BNC to BNC cable, choose RF cable and RF connector base on terminal equipment requirement.
Cowin is a professional 5g antenna company, we provide wireless antenna, bluetooth antenna, 5g antenna and etc. Want to know more? Please contact us.
