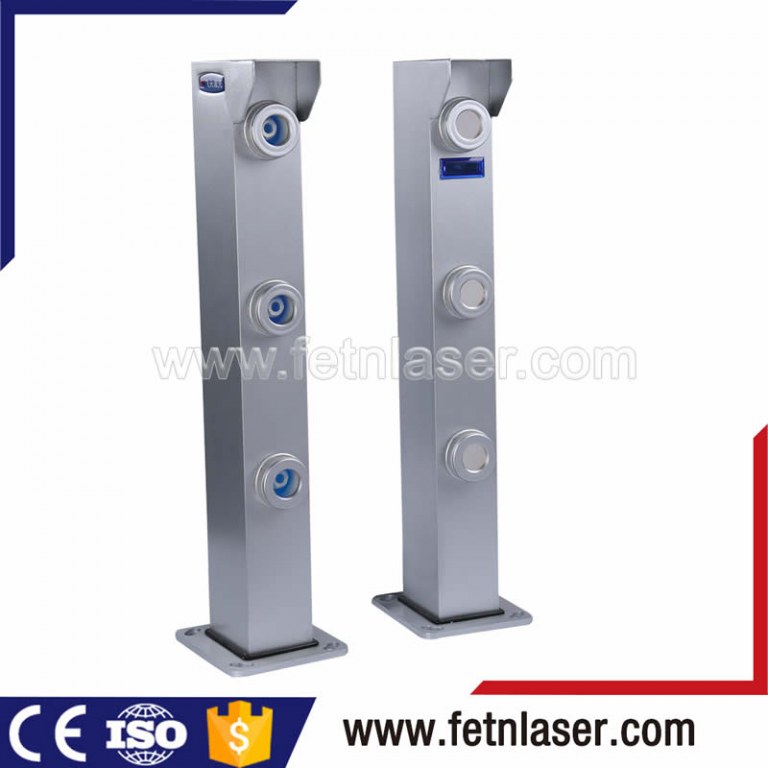

Anti-thief PIR Infrared Barrier laser beam detector for Alarm System
Quantité : 1000 Prix : USD420
XD-B**C series intrinsically safe explosion proof type three-beam laser intrusion detector is the up grade of XD-B series intrinsically safe explosion proof type double-beam product. It has more stable core components, more reasonable structure and increased alert density. It adopts adjacent double b eams to simultaneously realize blocking alarm, with higher stability, thus dramatically increasing a ccuracy of alarm.
XD-B**C series intrinsically safe type three-beam laser intrusion detector has strong ability to r esist cold and heat, electromagnetic radiation, interference of miscellaneous lights and could adapt to rough weather of wind, rain, dust, frost, etc., thus being suitable for perimeter areas with hig her alert rate requirements.
|
Item |
Technical indexes |
|
Model |
XD-B 50/100/200/300/500 C |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
three-layer alert |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% or AC220V |
|
Working current: |
270mA when transmitting 180mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Anti-dismantling output pattern |
A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle: <3′ Receiving angle: ＞10° </p> |
|
Optical axis adjustment angle |
Horizontal 30° Vertical ±30° (range adjustable.) |
|
Product dimension |
60mm (L) × 80mm (W) × 490 (H) |
|
Chassis dimension |
110mm (L) × 130mm (W) × 6mm (H) |
|
Material |
Aluminum alloy |
|
Product weight |
4.7KG (transmitting end: 2.7KG, receiving end: 2.0KG） |
|
Dimension of installation hole |
4 diameter 10 holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
