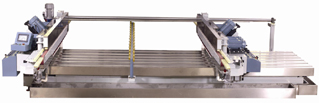

Architecture Glass Double Edge Grinding Machine

This machine use 20grindings (it also can be with safe chamfer function or film removal function. Film removal grinding can be decreased for edging) with 50mm conveyor process glass minimum 180mm*180mm width glass. The thinnest glass is 2mm (the thickest will be decided by processing request and wheels' quality). It's very suitable for all kinds of high quality construction glass products.

Main Technical Parameters

Minimum Glass Processing Width: 180mm

Conveyor Width: 50mm

Minimum Glass Processing Thickness: 3mm

Chamfer Width: 1~3mm

Bottom Maximum Grinding Volume: 3mm

Diagonal Precision Error: ±0.5mm/m

Parallel Width Precision Error: ±0.1mm/m

Pneumatic Working Pressure: 0.7Mpa

Chamfer Width Precision Error: ±0.2mm/m

Voltage/ Frequency: 380V/50Hz

Width Position Precision Error: ±0.1mm

Total Power: (4+2.2*number of grinding wheels )Kw

Thickness Position Precision Error: ±0.05mm

Working Table Height: 920±20mm

Polishing Level: Furniture Level

Machine Length: (250+10*grinding wheels)cm

Side Collapse Phenomena: No

Machine Width: (175+ Maximum Processing Width)cm

Glass Transmission Speed: 0.5~6.5m/min

Machine Height: 130cm
