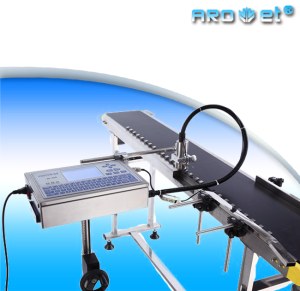

Arojet D-007 High Precision Economic Inkjet Printer

Arojet D-007 High Precision Economic Inkjet Printer

printing precision: 300 (DPI)resolution

Printing font: dot matrix and entity, four built-in fonts

printing graphics: can print various logo, graphics transmission is not affected by width ratio and the length of any r estrictions

Chinese Characters: built-in international level1 and level 2 characters (total more than 6000), Chinese pinyin input me thod

Printing lines: 1 to 15 lines

Character height: can print 1 mm to 18 mm

printing unit: single nozzle

Printing head: nozzle can rotating 180 degree; Adjustable forward, reverse, vertical downward; the system of fonts are adjustable back up and down, left and right rotation

Printing distance: between the nozzle and the objects is 3 mm to 10 mm

Automatic printing: counting, date, time and variable information such as serial number and batch number.

Information Storage: 100 messages

Message length: per message can be up to 250 characters

printing speeds: the maximum speed is 30 meter/minute, printing speed does not changed due to the increase number of rows.

Ink color: black, red, white, blue, yellow, etc

External interface: encoder, photoelectric sensor and data cables

environment temperature: 3 ℃ to 30 ℃; Humidity of 10% to 80%

Ink used: the quick dry environmental protection ink or oil-based ink, without external gas source and diluen t.

Chassis material: stainless steel

Font input : keyboard film

Dimension: 34.7 * 22 * 10 cm

Machine support: is adjustable up and down 50 cm to 75 cm, before and after fine adjustment.

Serial number: 1 to 8 bit serial number variable

System power consumption: average lower than 100 w

power supply: AC 220V

Applicable products: mobile phone screen & shell, beverage bottle, food packaging bags, drug boxes, window of model steel door, aluminum alloy, batteries, plastic pipe, steel plate, circuit boards & PCB circuit board,, ch ips, woven bag, egg, brake pad, cartons, motors, transformers, water meter inside dish, gypsum board , packaging,etc.

printing materials: the surface of metal, plastic, wood, aluminum foil, paper, film,etc.
