ASK Super Heterodyne Receiver

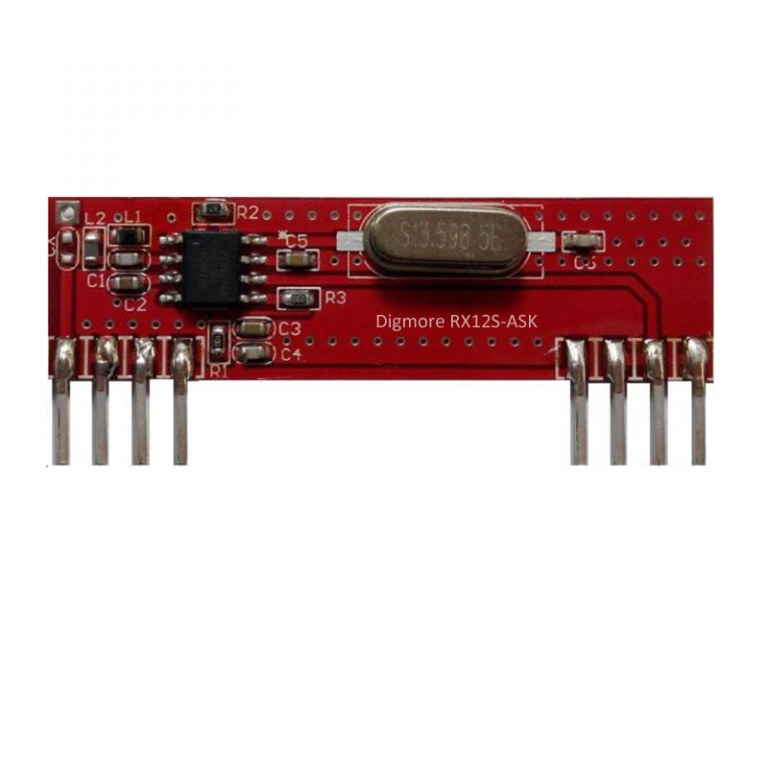

RX12S-ASK is ASK Super Heterodyne hybrid receiver module, which can be used to receive un-decoded / decoded data from the range of DIGIMORE ASK transmitter modules. The module is very simple to operate and offer a very low current consumption. Data can be transmitted directly into a microprocessor or decoding device. All receivers are compatible, producing CMOS/TTL Output, and only require connections to Power & Antenna.
FEATURES:
* ASK Demodulation
* Frequency available for 315/390/433.92Mhz
* Stable Operating Frequency
* Low Current Consumption
* Wide Operating Voltage 3 ~ 5.5VDC
* High Sensitivity: -110dBm
APPLICATION:
* Wireless Security Systems
* Garage Door Controller
* Remote Gate Controls
* Data Communications
* Sensor Reporting
