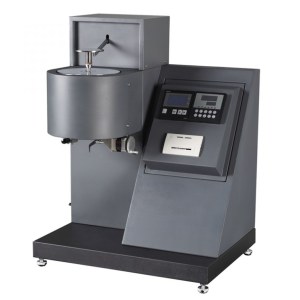

AT123 Melt Flow Index tester
AT123 MELT FLOW INDEX TESTER
Application:
AT123 Melt Flow Index tester is used to measure the melt flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastic resin in quality control and research applications. It is suitable for PC, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Standards: ASTM D1238, ISO1133, GB3682-2000, JB/T 5456
Note: For more standards, please contact us
Features:
1) With two test methods: MFR and MVR, and also can test melt density
2) Chinese/English operate interface
3) Simple structure, easy to operate, easy to maintain
Technical Specification:
|
Model |
AT123 |
|
Temperature range |
100℃~450℃ |
|
Temperature error |
＜0.5℃ |
|
Temperature resolution |
0.1℃ |
|
Heating time |
＜30min |
|
Temperature recovery time |
＜4 min |
|
Displacement accuracy |
0.1mm |
|
Time accuracy |
0.01s |
|
Flow rate measuring range |
0.1 ~ 100g/10min; 0.04~30g/10min, we suggest MFR; ＞30g/10min, we suggest MVR |
|
Standard die |
Tungsten carbide, Φ2.095±0.005mm |
|
Height of standard die |
8.000±0.020mm |
|
Inner diameter of feed cylinder |
Φ9.550±0.025mm |
|
Diameter of piston |
Φ9.475±0.015mm |
|
Length of piston head |
6.350±0.100mm |
|
Power |
AC220V, 50Hz, 450w |
Standard Configuration:
|
No. |
Item |
Quantity |
|
1 |
Main machine |
1set |
|
2 |
Weights |
1set |
|
3 |
Standard die |
1pc |
|
4 |
Cleaning rod |
1pc |
|
5 |
Load rod |
1pc |
|
6 |
Cleaning rod for standard die |
1pc |
|
7 |
Funnel |
1pc |
|
8 |
Tweezers |
1pc |
|
9 |
Foot screw |
4pcs |
|
10 |
Packing list |
1pc |
|
11 |
Quality certificate |
1pc |
|
12 |
User manual |
1pc |
Optional Configuration:
|
No. |
Item |
|
|
HZY-A200 Electronic balance (200g/0.001g) |
|
2 |
|
