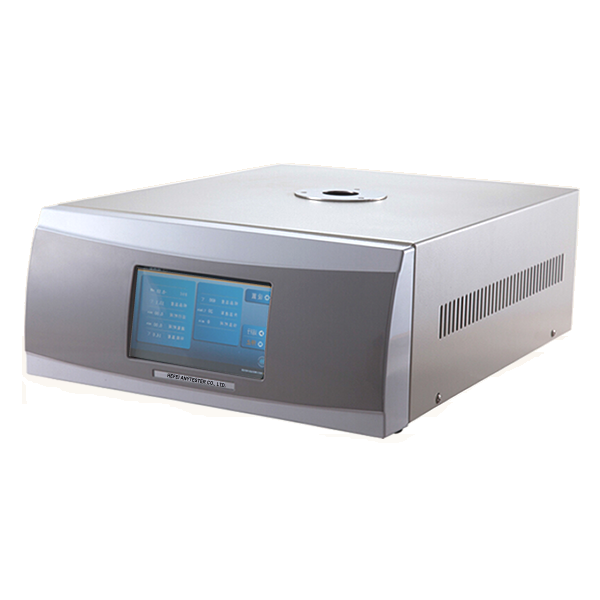

AT510 Differential Scanning Calorimeter
AT510 DIFFERENTIAL SCANNING CALORIMETER

Main machine
![]() |
Accessories
Application:
AT510 Differential Scanning Calorimeter is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.
Features:
1) Suitable for solid, powder and liquid samples, except gas sample
2) LCD display, touch screen operation

3) In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover
4) Digital gas mass flow meter, accurate to control the gas flow
5) Bilateral control: main machine control and software control, friendly operation interface, easy to operate
6) Two user interface on software, one is for DSC test, the other is for OIT test
7)
![]() |
Real-time display DSC-Temp curve or DSC-time & Temp-time curve
a) DSC-Temp curve for melting point test
ii.
![]() |
DSC-Temp curve for glass transition temperature test
1.
![]() |
DSC-time & Temp-time curve for OIT test
8) Full equipped with accessories, convenient and easy to test
Technical Specification:
|
Model |
AT510 |
|
DSC range |
0~±500mW |
|
Temperature range |
RT~800℃, air cooling (standard configuration) |
|
Heating speed |
1~60℃/min |
|
Temperature resolution |
0.1℃ |
|
Temperature fluctuation |
±0.1℃ |
|
Temperature repeatability |
±0.1℃ |
|
DSC resolution |
0. 05μW |
|
DSC accuracy |
0.05μW |
|
DSC sensitivity |
0.05μW |
|
Temperature control mode |
Heating up, keeping temperature, cooling down (program control) |
|
Display mode |
LCD touch screen |
|
Data interface |
USB |
|
Power supply |
AC220V, 50Hz |
Standard Configuration:
|
No. |
Item |
Quantity |
|
1 |
Main machine |
1set |
|
2 |
Test software |
1set |
|
3 |
Atmosphere device |
1set |
|
4 |
Furnace cover |
2pcs |
|
5 |
Ceramic crucible |
1bag/100pcs |
|
6 |
Aluminum crucible |
1bag/100pcs |
|
7 |
Alumina reference material |
1bag |
|
8 |
Tin particle |
1bag |
|
9 |
Rubber pipette bulb |
1pc |
|
10 |
Tweezers |
1pc |
|
11 |
Specimen spoon |
1pc |
|
12 |
Connecting pipe |
1set |
|
13 |
Power cord |
1pc |
|
14 |
Fuse (10A) |
5pcs |
|
15 |
Packing list |
1pc |
|
16 |
Quality certificate |
1pc |
|
17 |
User manual |
1pc |
Optional Configuration:
|
No. |
Item |
|
1 |
Ceramic crucible |
|
2 |
Aluminum crucible |
|
3 |
Computer |
|
4 |
Printer |
|
5 |
Cooling system from -100 ~ 800℃ |
|
6 |
Cooling system from -20 ~ 600℃ |
