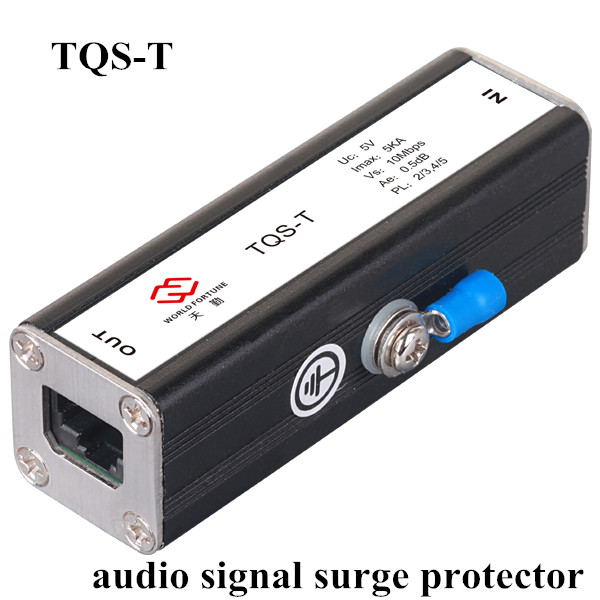

Audio signal surge protector
Quantité : 100000 Prix : 16.2usd
TQS-T
Audio signal surge protector
1. Product features
l Multi stage surge protection
l Low insertion loss
l Quick response
l High current capacity
l Low limited voltage
2. Applications
l Lightning protection of audio signal or digital carrier equipments
l Lightning protection of over current of telephone, fax machine, Modem, switch ADSL, ISDN
l FM receivers
l Access control systems
l Monitoring systems
3. Technical data
|
Model |
TQS-T |
|
Nominal operating voltage Un |
5V |
|
Nominal discharge current In (8/20μs) |
3KA |
|
Maximum discharge current Imax (8/20μs) |
5KA |
|
Protection level Up (8/20μs,3KA)) trong> |
≤20V |
|
Response time Ta |
≤1ns |
|
Transmission rate |
10Mbps |
|
Insertion loss |
≤0.5dB |
|
Protection route |
1 |
|
Dimension |
85*25*25mm |
|
Connector type |
RJ11 |
|
Weight |
78g |
|
Mounting type |
Series connected before the protected equipments |
|
Housing material |
Aluminum |
|
Index of protection |
IP20 |
|
Operating environment |
Temperature: -40—+85℃ humidity: ≤95% |
|
warranty |
Five-year warranty, three-year replacement |
|
Related items |
TQS-T-16, TQS-TY; TQS-T110(distributing frame) |
