Australia and New Zealand AS/NZS3112 Plug & Socket Gauges

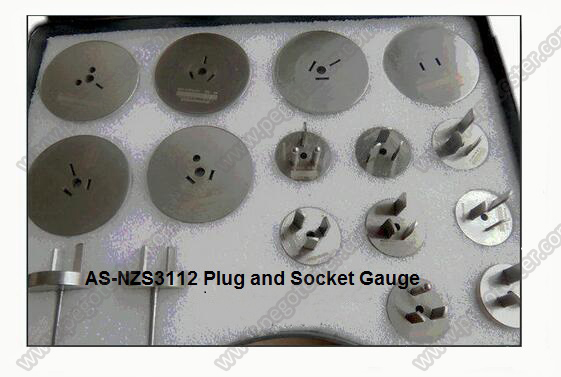

AN/NZS3112 Plug & Socket Gauge

1. Figure 2.5 Pressure test apparatus for insulation on insulated plug pins at high temperature
2. Figure 2.6 Impact test apparatus for insulation on insulated plug pins at low temperature
3. Figure 2.9 Mounting of plug for temperature rise test
4. Figure 2.10 Pin clamping unit for the temperature rise test
5. Figure 2.8 Application for force for pin bending test
6. Figure 3.1 Gauge for depth of no-contact test
7. Figure 3.6 Device for checking the resistance to lateral strain (three pin gauge)
8. Figure 3.7 Device for checking the resistance to lateral strain (two-pin gauge)
9. Figure A1 Gauge for Three-pin 250V Max. flat-pin plugs
10. Figure B1 Gauge for Two-pin flat-pin 125V Max. Plugs ( with parallel pins)
11. Figure C1 Three-pin test plug for checking three-pin flat pin 250V max. socket-outlets against the standard test finger in accordance with clauses 3.3.4 and 3.8.1
12. Figure D1 Three-pin test plug for checking three-pin flat pin 250V MAX. socket-outlets against incorrect insertion of plugs in accordance with clause 3.8.2
13. Figure E1 Dimensions of extra-low voltage flat-pin plugs
14. Figure F1 Gauge for flat and round pin plugs
15. Figure G1 Three-pin plug with flat and round pins for tests to clauses 3.3.4 and 3.8.1
