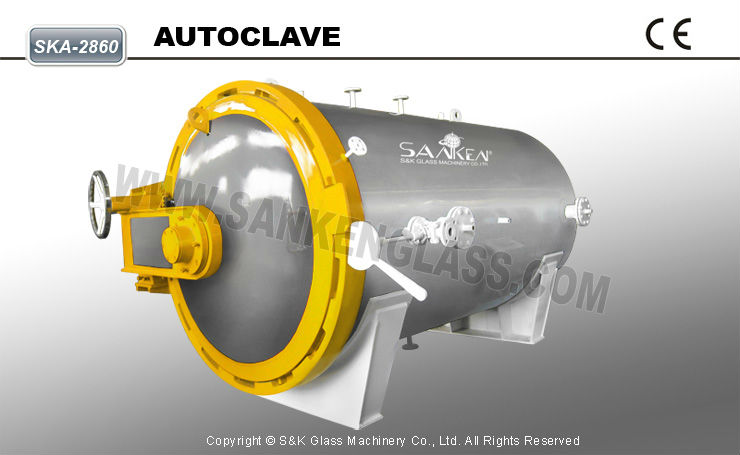

Autoclave Glass Machine

Autoclave Glass Machine - For production of laminated, anti-bullet and anti-bombing glass

High Pressure Autoclave Glass Autoclave

This machine will melt the PVB film and combined two layers or more than two layers glass by high temperature and high pressure.

Laminated Glass Autoclave Autoclave Glass Machine

- Specification of Autoclave Glass Machine:

Cauldron body steel shell effective inside diameter: 3000mm

Processed glass extreme breadth: 2500mm

Processed glass greatest length: 6000mm

The processed glass is most light-sized: 350*350

Working pressure: 0--1.25Mpa

Safety valve opening pressure: 1.3Mpa

Operating temperature: 0-135 °C

Design temperature: 150 °C

Actuating medium: Compressed air (in cauldron temperature 5 °C-7 °C)

In cauldron gauge: 1200mm (basis customer request)

Heat preservation way: In keeps warm,

thickness 50-100mm

Opens the door the way: Electrically operated, opens the door left (toward opens left facing cauldron gate)

Total output: 114KW (energy conservation)

dimensions: 7500*3600*3250mm (L*W*H)

Laminated Glass Autoclave Autoclave Glass Machine

- Material of Autoclave Glass Machine:

Autoclave gate and body: 16MnR

Heater: Gold-plated midwave infrared preheater pipe

Full-pressure system: Rubber seal packing collar

Thermal insulation material: Salty cotton and kapok and aluminum silicate

Chiller: Seamless steel pipe finned tube entire volumetric heat melt galvanization
