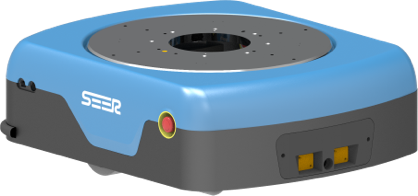

Automated Mobile Jacking Transfer Robots SJV-SW500

Automated Mobile Jacking Transfer Robots SJV-SW500

Laser Slam Omni-directional Latent Automated Mobile Robots SJV-SW500, equipped with SRC series core controller, has an ultra-low chassis, so that it can drill into the shelf for jacking and transfer with a limit load of 600kg. This AMR transport tracking robot has various navigation methods and flexible deployment. Its slim body enables to move in all directions easily. SEER Group, one of the professional autonomous mobile robots companies, manufactures autonomous and mobile robotics of high quality.

Descriptions of Automated Mobile Jacking Transfer Robots SJV-SW500

Rotating Tray

The pallet can be rotated 360° arbitrarily to control the states of the goods.

Stable Navigation

Built-in industrial-grade WiFi client equipment makes network data interaction more stable.

Shelf Identification

The location and posture of the pallet are accurately and autonomously identified through the pallet identification sensor. Efficient and precise forking of cargoes can be realized even if the pallet is moved.

Autonomous Charging

Automatic charging is supported, requiring no staff intervention during the charging operation.

Specifications of Automated Mobile Jacking Transfer Robots SJV-SW500

Basic parameters

Product model

SJV-SW500

Navigation method

Laser SLAM

Drive mode

Two-wheel differential

Shell color

Blue/ Customized color

L*W*H

924*762*300mm

Rotation diameter

1035mm

Weight (with battery)

200kg

Load capacity

500kg

Chassis ground clearance

25mm

Jacking platform dimensions

Ø600mm

Maximum jacking height

60±2mm

jacking time

8±0.5s

Laser scanning height

159mm

Network

Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Ambient temperature and humidity range

TEMP: 0-50℃ / RH: 10-90%, no compression, no condensation

IP rating[1]

IP20

Performance parameters

Passability (slope/step/gap)[2]

≤5%/5mm/30mm

Minimum passable width

880mm

Navigation position accuracy[3]

±5mm

Navigation angle accuracy[3]

±0.5°

Navigation speed

≤1.6m/s

Map area (single frame)

≤400000m²

Battery parameters

Battery specifications

48/40 (Lithium Iron Phosphate)V/Ah

Comprehensive battery life

10h

Charging time (10-80%)

≤1.5h

Charging method

Manual/Automatic

Battery cycle number

> 2000

Configurations

Lidar number

1(SICK nanoScan3 / P+F R2000-HD)

Cargo detection

×

E-stop button

Speaker

Atmosphere light

Bumper strip

Features

Basic functions[4]

Wi-Fi roaming

Automatic charging[5]

Shelf recognition

Spin[6]

Precise location with QR code[7]

QR code navigation[8]

Laser reflector navigation

Certifications

EMC/ESD

UN38.3

RoHS

REACH

The road surface should be smooth, clean and free of obvious ups and downs. Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the ramps, steps, or gaps, but can pass quickly perpendicular to them.

The localization accuracy is affected by environment, ground, etc. Please refer to the localization accuracy interpretation in the final technical agreement.

Basic functions include but are not limited to map editing, model editing, localization module, navigation module and API interface.

Need to be used with a dedicated automatic charging pile.

Need to be used with Pepperl + Fuchs PGV100-F200A-R4-V19 QR code scanner.

SJV-SW500 is designed for indoor transportation only and is not recommended for outdoor use.

Seers group is a professional autonomous mobile robots manufacturers, we provide agv reach truck, amr forklift and etc. Want to know more? Contact us.
