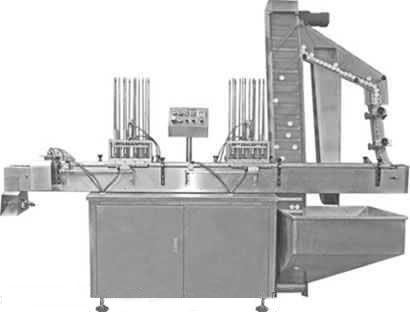

Automatic Cap Lining Machine

Model Ability Specification Voltage Power Weight Size

HQS-3 60-180/min Φ20-40mm 220v 0.65kw 300kg 1600Χ1000Χ2000mm

HQS-3A 60-180/min Φ20-50mm 220v 0.75kw 300kg 1100Χ1000Χ2000mm

HQS-4 60-400/min Φ20-50mm 220v 0.73kw 350kg 2450Χ1000Χ2000mm

HQS-4A 60-200/min Φ20-50mm 220V 0.73kw 350kg 2450Χ1000Χ2000mm

It works: high-speed cap lining machine in order to achieve the purpose of automated production design, manag ement cover, plug liners process of automated operations. Simple and fast plug liners, unified locat ion, neat and beautiful, clean and sanitary, and replaces the previous manual.

The superstructure automatic adjustment function: automatic feeding device can be adjusted according to the cap diameter feeding speed, flip automati cally back to the warehouse.

The lack of cap automatic stop function: equipped with a photoelectric detection devices in the automatic stopper pad process, import, with no cap is not automatic shutdown feature.

Removed devices: the opposite caps and liners or no liners is automatically removed. (Optional)

Sub packing device: automatic sub-function can be set to cap the number of automatic separation, with no downtime, and greatly improve the efficiency of follow-up work. (Optional)

Comply with the GMP certification: This machine replaces the past, hand-stuffed liner, may dispense with the man-made pollution. Full compliance with GMP requirements, and is widely used in pharmaceutical, plastic bottle factory, chem ical, food and other industries.
