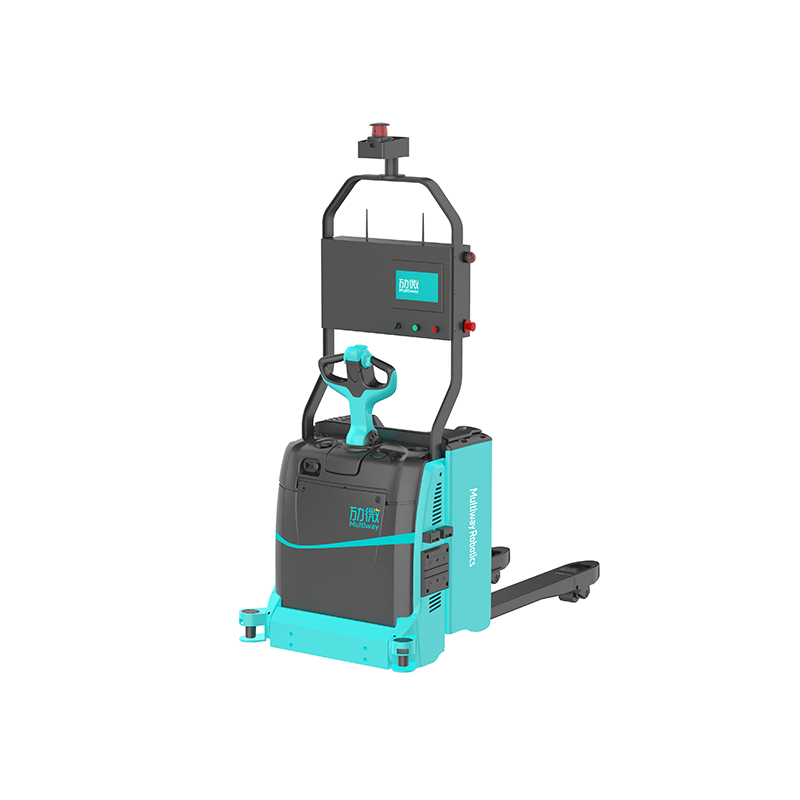

Automatic Electric Motorized Pallet Jack
Multiway Robotics is an advanced manufacturer of intelligent logistics solutions in automatic electric motorized pallet jack. AGV Pallet Truck MW-T20, the payload can reach 2 tons, which is suitable for logistics warehousing systems, automated factories, workshops, warehouses and other places, which can realize the precise handling of goods.
The Specification Of MW-T20 Automatic Pallet Jack
●Standard ○Option
|
Standard Models |
MW-T20 Automatic Pallet Jack |
|
|
Navigation |
Laser+reflector navigation |
● |
|
LiDAR SLAM navigation |
○ |
|
|
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) |
○ |
|
|
Communication |
Wireless Wi-Fi |
● |
|
Optical communication |
○ |
|
|
5G |
○ |
|
|
Specifications |
Payload（kg） |
2000 |
|
Turning Radius（mm） |
1860 |
|
|
Lost load height （mm） |
210 |
|
|
Max lifting height（mm） |
210 |
|
|
Max height payload（kg） |
2000 |
|
|
Min fork height（mm） |
85 |
|
|
Dimensions l/e/s（mm） |
1150x165x55 |
|
|
Outer fork width（mm） |
680 |
|
|
Aisle width【Pallet dimensions 1m(along the fork)x1.2m】（mm） |
2700 |
|
|
Pallet posture recognition width【Pallet 1m(along the fork)x1.2m】（mm） |
3050 |
|
|
Weight（kg） |
900 |
|
|
Dimensions LxWxH（mm） |
2000x950x2300 |
|
|
Motion capability |
Motion |
Reach, back, turning |
|
Speed(Unloaded/Max loaded)（m/s） |
1.66 |
|
|
Accuracy（Bearing wheel center）（mm） |
±5 |
|
|
Endangle accuracy（°） |
±1 |
|
|
Ditch crossing capability（mm） |
≤30 |
|
|
Obstacle crossing capability（mm） |
≤10 |
|
|
Climbing capability（mm） |
≤3°（5%） |
|
|
Safety&protection |
Manual/Auto |
● |
|
Offset protection, Abnormal positioning protection |
● |
|
|
Components malfuction, communication fault protection |
● |
|
|
Bottom front LiDAR anti-collision（1/2pcs） |
●（2） |
|
|
3D obstacles avoidance（Front/back 1/2pcs） |
○ |
|
|
Fork front anti-collision（Light sensor） |
● |
|
|
Bumper strip（Truck head） |
○ |
|
|
Emergency button（At least 2pcs） |
● |
|
|
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) |
● |
|
|
Width light（Front, left, right 3pcs） |
● |
|
|
HMI（7 inches） |
● |
|
|
Monitoring camera |
— |
|
|
Fork function |
Cargo detection |
● |
|
Cargo posture detection |
● |
|
|
Anti-pressure detection(Light sensors) |
— |
|
|
Cargo offset detection(Ultrasonic) |
○ |
|
|
Space detection(LiDAR point cloud) |
○ |
|
|
Auto fork distance adjust |
— |
|
|
Lateral offset positioning |
— |
|
|
Inclination detection |
— |
|
|
Battery capability |
Recharging mode |
Manual/Auto |
|
Manual recharging(Plug direct) |
● |
|
|
Battery replacing（Standard） |
Hoisting |
|
|
Lateral replacing(less capability) |
○ |
|
|
Battery type(Standard) |
LiFePO4 |
|
|
Voltage |
24V |
|
|
Standard Capability【Hoisting】 |
200Ah |
|
|
Standard Capability【Lateral】（Ah） |
200Ah |
|
|
Operation time（h） |
4-5h |
|
|
Lifetime |
3000 times, 70% left |
|
|
Recharging station（Standard） |
24V100A |
|
|
Visual function |
Pallet posture recognition（3D camera） |
● |
|
Fork feeding side detection（3D camera） |
○ |
|
|
Weight detection（Weighing module） |
○ |
|
|
Cargo falling detection（3D camera×2pcs） |
○ |
|
|
Auto inventory（2D+3D cameras） |
○ |
|
|
Bar code/RFID recognition（Reader/RFID sensor） |
○ |
|
The Technical Details Of MW-T20 Automatic Battery Pallet Jack
Environment adaption: Laser navigation, no need to refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable unmanned forklift, improving flexibility.
High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.
Max speed 1.66m/s, max payload 2000kg, 7×24h full time running.
Intelligent, safe, easy to operate: Comprehensive self detection capability.
Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
How to Buy Electric Pallet Truck
First of all, customers have to choose automated pallet jack according to the purchase demand. Then, customers need to pay attention to the performance of the all-electric pallet truck, such as its active gearbox, which must be checked when purchasing, because it is the main equipment on the machine. Once damaged, it will seriously affect its efficiency in the working process. .When purchasing, customers should pay attention to whether the robotic pallet jack is easy to repair, and whether there are staff with maintenance skills in the company, because once a problem occurs with the full electric pallet truck, an alarm will be issued, and it must be repaired in time to increase its service life.
The Advantages Of Using Warehouse Electric Pallet Jack For Horizontal Cargo Handling
Optimize the process: the system of heavy duty electric pallet jack easily connect many processes together as needed, and more intuitively discover the rationality of the site process arrangement.
Special working environment: pallet jack automatic can work in environments where personnel are not suitable or have potential safety hazards.
Cost control: electric pallet jack for trucks can save a lot of labor and quickly recover the investment, and at the same time increase the employee turnover rate for the boring mechanical handling work.
Multiway Robotics is a warehouse robot manufacturers, we provide warehouse robot, bots warehouse and etc. Want to know types of automated guided vehicle? Please contact us.
