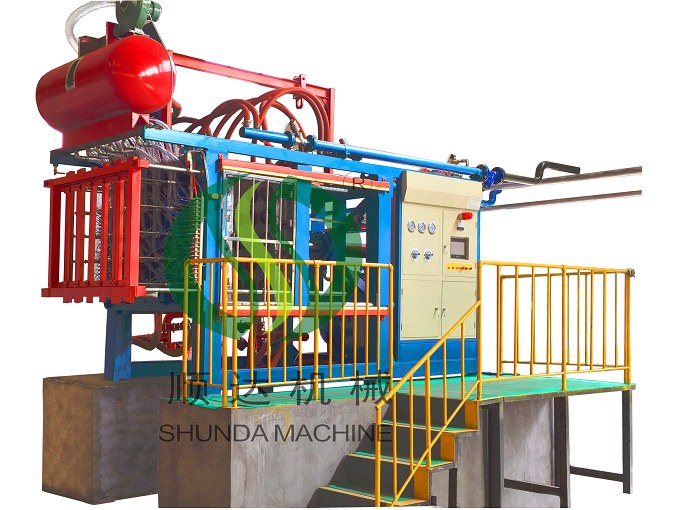

Automatic EPS Shape Moulding Machine

We supply complete eps foam production line and turnkey project. We can upgrade the machines according to customers'requirements. Our company floor area 18000 square meters, has four big modern workshops. Ⅰ.EPS shape production line mainly includes 3 parts: 1. EPS pre-expander: it's used to make EPS raw material to foamed beads 2. EPS shape molding machine: it's used to make foamed beads to kinds of shaped products like foam box, electric & electronic package, ICF, helmet, seed tray, decoration cornice and etc. 3. Mould: it's hang in the shape molding machine to make different products. Ⅱ.Features of eps foam machinery 1. All the frames are welded, with four horizontal guide rods, adopts PLC control, Mould closing, filling, heating, cooling and demould, the whole procedure automaticcally. All electronic components are world famous brands, ensure the machine is stable running, energy efficiency, longer working life and higher productivity; 2. Heating pressure controlled by the e, assisted by the balance valve, ensure the quality of final product. 3. Driven by hydraulic system, stable running 4. Adopt the pressurized filling system, ensure the enough filling to the mould. 5. Adopt the rotary encoder to control the distance between MI and MII, can be adjusted in the touch screen. 6. Adopt the fault re-checking system. Ⅲ.Technical Data of eps foam machinery Item/type Unit PSZ-1200 PSZ-1400 PSZ-1600 PSZ-1800 PSZ-2000 Dimension of standard mold mm 1200×1000 1400×1200 1600×1350 1800×1600 2000×1800 Dimension of finished product mm 1050×850 ×350 1220×1050 ×350 1420×1200 ×350 1610×1400 ×350 1850×1650 ×350 Max mold opening mm 1300 1300 1300 1300 1300 Inlet of steam mm ф65 ф65 ф65 ф65 ф65 Cooling water pressure mm ф65 ф65 ф65 ф65 ф65 Compressed air inlet mm ф80 ф80 ф80 ф80 ф80 Steam pressure MPa 0.5～0.7 0.5～0.7 0.5～0.7 0.5～0.7 0.5～0.7 Air pressure MPa ≥0.5 ≥0.5 ≥0.5 ≥0.5 ≥0.5 Cooling water pressure MPa 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 Fluid drive pressure Kw 5.5 5.5 7.5 7.5 7.5 Power of vaccum pump Kw 4 4 5.5 5.5 5.5 Inspiratory capacity of vacuum pump m3/h 165 165 230 230 230 Overall dimension mm 3600×1700 4600×2000 4600×2200 4600×2400 5000×2600 ×3000 ×3100 ×3200 ×3400 ×3600 Weight kg 4300 4800 5200 6200 6500 Ⅳ.The application of EPS products EPS Shape Moulding Machine Operation Video url: http://www.epsmachinefactory.com
