Automatic ink proofer
operation video : http://youtu.be/74y2hIG6lQ0
Alibaba: http://nuobang.en.alibaba.com
Ink uniforming mode:
1. The ink uniforming speed can be switched between automatic regulation and manual regulation, meeting different operation habits and various special use conditions.
2. As for chain movement, no-chain-movement soft startup mode with middle positioning can be set, so that left-right uneven color presentation and ink misting can be reduced and the precision of color presentation can be improved.
3. Time setting for four-section ink uniforming manner (0-200 seconds settable for each section). Any ink uniforming manner can be set at will, including chain movement middle positioning, intermittent closing, fixed closing and automatic speed changing, providing better accuracy and convenience.
Ink uniforming pressure:
Automatic regulation basing on wearing of the printing roller or the error between new and old printing roller.
Color presentation pressure: Automatic regulation basing on thickness of the color presentation material (-1~+1mm), providing better precision and convenience.
Color presentation effect: A 10mm secondary color presentation area of light color is set, so that user can compare the difference between two colors more accurately and visually at the time of ink comparison (See the color sample picture of NB229T).
Cleaning: No chain movement of the metal roller under cleaning mode, providing higher safety and convenience.
Printing roller: Two-use roller for common and UV printing as standard configuration.

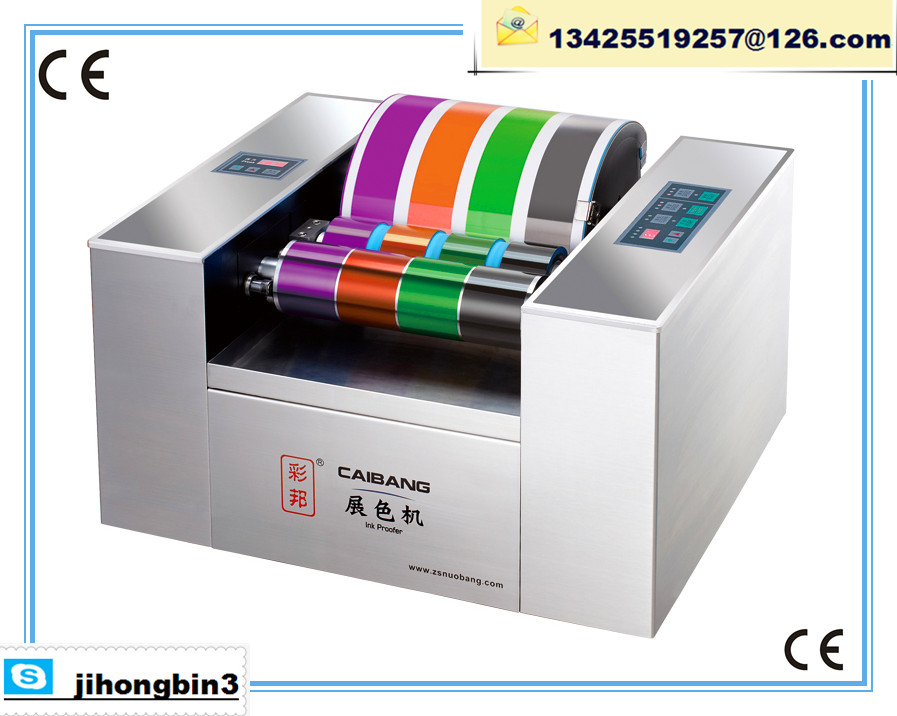

Main technical parameters of Caibang NB229T automatic color mixing simulation machine
Power: AC220V, 50Hz, 250W
Net weight: About 90kg
Effective area of ink color bar: 40 x 220mm (4 bars), 60 x 220mm (3 bars), 100 x 220mm (2 bars), optional.
Dimension of printing material: 290 x 250 mm
Outline dimension: 555x440x365mm
Ink uniforming speed: Three directly selectable rates on the control panel of the equipment, that is 400, 500 and 700rpm. Each rate can be set freely from 0 to 1,000rpm, with stepless frequency conversion speed regulation.
Printing speed: Three directly selectable rates on the control panel of the equipment, that is 10, 15 and 20rpm. Each rate can be set freely from 0 to 30rpm, with stepless frequency conversion speed regulation.
Ink uniforming duration: 1 to 800s, adjustable.
