Automatic Paint Spraying Line

Automatic Paint Spraying Line

Steel structure buildings are widely used in various industries. Because of their complex shapes, Most of the anti-corrosion coating work was done manually. The on-site VOC emissions are large, resulting in high environmental pollution and serious harm to the health of workers.

We have designed an automatic spray painting line system that can solve most steel structure spraying application scenarios and provide a practical and feasible solution for the steel structure spraying industry. If you want to know more about automatic spray painting lines, or automatic paint spraying lines, Please do not hesitate to contact ZHENYU automatic spray machine factory.

Main Features Of The Steel Structure Automatic Spray Painting Line Machine

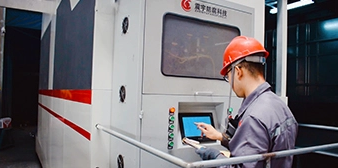

An automatic spray painting line machine makes it easier to input the parameters

The operation mode of the automatic spray painting line machine is changed from the traditional manual input of parameters to a digital processing system based on the 3D model, which automatically retrieves component parameters to design the coating spraying path.

Main Features Of The Steel Structure Automatic Spray Painting Line Machine

Automatic paint consumption calculation

Before work starting, the automated spray coating systems automatically calculates the overall paint consumption of this work according to the component parameters, quantities and specified coating thickness and provides it to the painter in advance for guidance.

Main Features Of The Steel Structure Automatic Spray Painting Line Machine

Efficient the automatic spray painting line machine

The automatic spray painting line machine sprays the bottom and upper area of the component at one time, avoiding the secondary turning action and saving time waiting for hard drying before the turning action, which greatly saves working time and improves the utilization rate of the workshop space.

Main Features Of The Steel Structure Automatic Spray Painting Line Machine

Automatic spray painting line machine quality assurance

Automatic paint spraying line machines' pressure, spraying angle, distance, speed, and other important parameters are set in the best state, avoiding the defects of paint mist particles and uneven thickness, missing coating, sagging, and other defects caused by manual spraying, and ensuring the consistency of quality.

Main Features Of The Steel Structure Automatic Spray Painting Line Machine

Environmental protection of the automatic spray painting line machine

This automatic paint spraying equipment has its own air circulation system, which is connected to the VOC treatment system and the treatment efficiency is greatly improved. The solid paint mist particles are collected and treated in a centralized manner, which keeps another part of the workshop clean and tidy. The automatic paint spraying line machine reduces the labor intensity of paint workers and reduces occupational hazards.

Key Components and Technologies in Automatic Paint Spraying Lines

ZHENYU is a leading company in the field of automatic paint spraying lines, providing advanced and efficient solutions for various industries. The key components of their automated spray painting machine include a loading and unloading system, a pre-treatment system, a drying oven, a spray booth, and a curing oven.

The loading and unloading system is responsible for the smooth transition of products into and out of the line.

The pre-treatment system prepares the surface of the product for painting, ensuring optimal adhesion of the paint.

The drying oven removes any residual moisture from the product before it enters the spray booth, where the actual painting takes place.

The curing oven then hardens the paint, ensuring a durable and high-quality finish.

ZHENYU utilizes cutting-edge technologies such as PLC control systems for precise operation, and advanced filtration systems to ensure a clean and safe working environment. Their automatic spray painting lines are designed for high efficiency, consistent quality, and minimal environmental impact.
