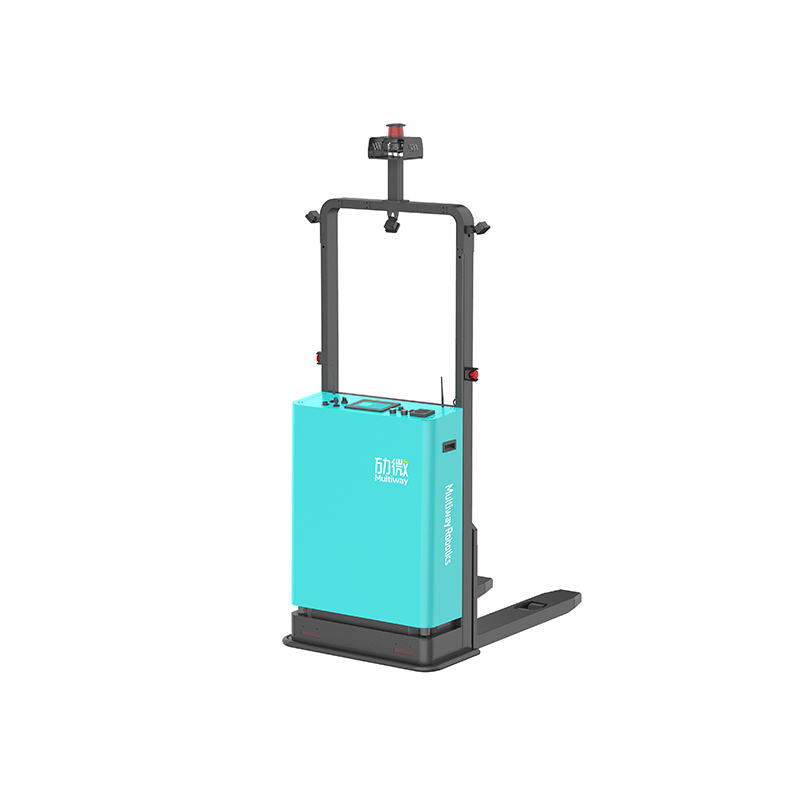

Automatic Pallet Truck AGV

Multiway Robotics is an advanced manufacturer of intelligent logistics solutions in automatic pallet truck AGV. AGV guided vehicle MW-T10, designed for narrow aisle handling, the body is thinner, and it is widely used in horizontal handling and cargo handling in workshops or warehouses with various pallet operations.

The Specification Of MW-T10 Automatic Pallet Truck

Standard Option

Standard Models

MW-T10 Automatic Pallet Truck

Navigation

Laser+reflector navigation

LiDAR SLAM navigation

Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling)

Communication

Wireless Wi-Fi

Optical communication

5G

Specifications

Payloadkg

1000

Turning Radiusmm

1130

Lost load height mm

210

Max lifting heightmm

210

Max height payloadkg

1000

Min fork heightmm

86

Dimensions l/e/smm

1150x180x60

Outer fork widthmm

680

Aisle widthPallet dimensions 1m(along the fork)x1.2m】(mm

2250

Pallet posture recognition widthPallet 1m(along the fork)x1.2m】(mm

2650

Weightkg

520

Dimensions LxWxHmm

1570x845x2300

Motion capability

Motion

Reach, back, turning

Speed(Unloaded/Max loaded)m/s

1.38

AccuracyBearing wheel center)(mm

±5

Endangle accuracy°

±1

Ditch crossing capabilitymm

≤30

Obstacle crossing capabilitymm

≤10

Climbing capabilitymm

≤3°5%

Safety&protection

Manual/Auto

Offset protection, Abnormal positioning protection

Components malfuction, communication fault protection

Bottom front LiDAR anti-collision1/2pcs

2pcs

3D obstacles avoidanceFront/back 1/2pcs

Fork front anti-collisionLight sensor

Bumper stripTruck head

Emergency buttonAt least 2pcs

SoundSpeakeralarmLight alarm3-color light 2pcs)

Width lightFront, left, right 3pcs

front

HMI7 inches

Monitoring camera

Fork function

Cargo detection

Cargo posture detection

Anti-pressure detection(Light sensors)

Cargo offset detection(Ultrasonic)

Space detection(LiDAR point cloud)

Auto fork distance adjust

Lateral offset positioning

Inclination detection

Battery capability

Recharging mode

Manual/Auto

Manual recharging(Plug direct)

Battery replacingStandard

Disassembly and assembly

Lateral replacing(less capability)

Battery type(Standard)

LiFePO4

Voltage

24V

Standard CapabilityHoisting

110/150Ah

Standard CapabilityLateral】(Ah

Operation timeh

4-5h

Lifetime

3000 times, 70% left

Recharging stationStandard

24V100A

Visual function

Pallet posture recognition3D camera

Fork feeding side detection3D camera

Weight detectionWeighing module

Cargo falling detection3D camera×2pcs

Auto inventory2D+3D cameras

Bar code/RFID recognitionReader/RFID sensor

The Technical Details Of MW-T10 Automated Pallet Truck

Environment adaption: Laser navigation, no need to refit scenarios.

Intelligent running: Map building, path planning, auto recharging, self-operating that meets various scenarios. Machine vision and comprehensive system enable unmanned forklift, improving flexibility.

High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.

Max speed 1.38m/s, max payload 1000kg, 7×24h full time running.

Intelligent, safe, easy to operate: Comprehensive self-detection capability.

Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.

Sustainable iteration, remote upgrading, friendly HMI.

MW-T10 automated pallet truck is mainly used for horizontal handling and cargo handling in warehouses and workshops, with a rated load of 2T and a large loading capacity. Although the loading capacity of pallets is smaller than that of containers, it can also be concentrated in a certain quantity, which is much larger than the combined capacity of general packaging. The maximum operating speed is 2 m/s, while achieving low energy consumption and saving operating costs. When the automated pallet truck moves to the designated address and prepares to move autonomously, the actual position and the computer program setting until the deviation value (mm) is small, adapt to different slope angle operations.

How the MW-T10 AGVs Pallet Trucks Works

After receiving the material transfer instruction, the manipulator system of the automated pallet truck will calculate, plan and analyze according to the stored operation map and the current position and driving direction of the AGV automated pallet truck, select the best driving route, and automatically control the driving and steering of the AGV automated pallet truck. After reaching the loading position and accurately stopping, the transfer mechanism moves to complete the loading process.

The Advantages Of Using AGV Pallet Truck For Horizontal Cargo Handling

Improve logistics management: pallet truck AGV can make the placement of goods more orderly, tidy and standardized.

Reliable dispatching ability: data analysis and remote control through the AGV central control system.

Prevent cargo damage-if the work is carried out manually, the product may be damaged due to manual irregular operation or negligence, but the AGV automated pallet truck can avoid the loss caused by this mistake for the enterprise.

Long-distance transportation: AGV system can effectively carry out transportation at any site, reducing the waste of human resources.

Special working environment: AGV automated pallet truck can work in environments where personnel are not suitable or have potential safety hazards.

Multiway Robotics is a top warehouse robotics companies, we provide Multiway Robotics, bots warehouse and etc. Want to know automated guided vehicle price? Please contact us.
