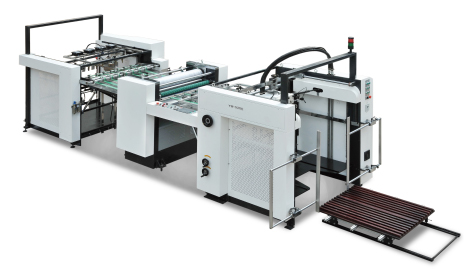

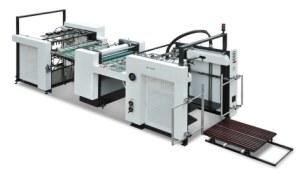

Automatic Paper Knurling Machine MODEL YW-E
Product description:
The automatic paper embossing machine with the functions: automatic feeder & auto collecting picker. Full automatic control in processing, adopt frequency governor, automatic hydraulic system and pneumatic blade, it is characterized by controllable speed, double-sheet control, automatic counting, etc. Its average can range from 3000~5000pc/h. It is applied to embossing the sheet surfaces of batches like packing products, playing cards, gift cards, golden and silver card paper, etc.
Optional collector:
-Auto vibrating collector
-Manual collecting table
Main technical parameter:
|
Model |
YW-720E |
YW-920E |
|
Max embossing speed |
80 m/min |
80 m/min |
|
Max embossing width |
680mm |
880mm |
|
Paper range |
>160 g/m2 |
>160 g/m2 |
|
Operation pressure |
2-10 Mpa |
2-10 Mpa |
|
Main motor pressure |
14 kw |
15 kw |
|
Vacuum pressure |
0.06 Mpa |
0.06 Mpa |
|
Air source pressure |
1.8-1.0 Mpa |
1.8-1.0 Mpa |
|
Overall dimension(LxWxH) |
4800x1500x1800 mm |
4800x1700x1800 mm |
|
Machine weight |
2800 kgs |
3500 kgs |
|
Model |
YW-1150E |
YW-1300E |
|
Max embossing speed |
80m/min |
80 m/min |
|
Max embossing width |
1000mm |
1180 mm |
|
Paper range |
>160 g/m2 |
>160 g/m2 |
|
Operation pressure |
2-10 Mpa |
2-10 Mpa |
|
Main motor pressure |
16 kw |
18 kw |
|
Vacuum pressure |
0.06 Mpa |
0.06 Mpa |
|
Air source pressure |
1.8-1.0 Mpa |
1.8-1.0 Mpa |
|
Overall dimension(LxWxH) |
4800x1800x1800 mm |
4800x2000x1800 mm |
|
Machine weight |
4200kgs |
5000kgs |
