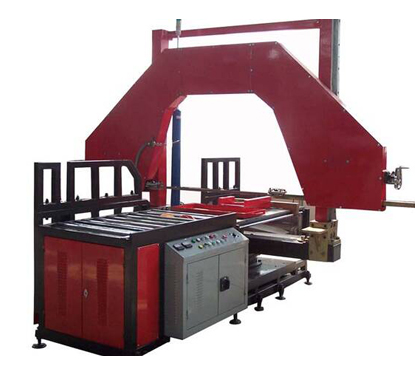

Automatic Pipe Saw Machine
Quantité : 50 set/one Prix : 800usd~200000usd
Features of Pipe Saw
Hydraulic operated pipe saws, especially used for the preparation of pipe segments in PE, PP and other thermoplastic materials for the production of bends, tee and other manufacturing. the reduction rate of the saw is hydraulically controlled like the belt clamp used for fixing the pipe section. The saw blade is made in Germany.
Hydraulically raised and lowered cutting cycle;
67-degree maximum cutting angle allows the production of segments for bends, tees and Y-branch tees;
Angular cutting error equal to or less than 1 degree;
Speed of saw blade 195m/min;
Pipe clamping straps.
Types of automatic plastic tube cutting machine for Sale
LHC 315 Pipe Saw
LHC315 pipe saw is used for the production of bends, tees and other fabrications and for the production of Bends, Tees, crosses, Y and other fabrications.
LHC 800 Pipe Saw
LHC800 hydraulically operated pipe saw specifically produced for the preparation of pipe segments in PE, PP and other thermoplastic materials, used for the production of Bends, Tees, Cross, Y and other fabrications.
LHC 1200 Pipe Saw
LHC1200 hydraulically operated pipe saw specifically produced for the preparation of pipe segments in PE, PP and other thermoplastic materials, used for the production of Bends, Tees, Cross, Y and other fabrications.
LHC 1600 Pipe Saw
LHC1600 hydraulically operated pipe saw is specially used to prepare pipe sections of PE, PP and other thermoplastic materials, and is used to manufacture elbows, tees, crosses, Y-shaped , etc.
LHC 2000 Pipe Saw
LHC2000 hydraulically operated pipe saw is specially used to prepare pipe sections of PE, PP and other thermoplastic materials, and is used to manufacture elbows, tees, crosses, Y-shaped , etc.
FAQs of Pipe Saw
Q. of automatic pipe saw machine cannot be clamped?
A.
Malfunction analyzes:
① cannot be clamped.
② Pressure relay is not adjusted well.
③ The clamping cylinder is leak.
Solutions:
① Adjust the clamping pressure;
② Adjust the pressure relay;
③ Replace the oil ring
Q.Lifting speed of main cylinder of automatic pipe saw machine is too quick or too slow
A.
Malfunction analyzes
① System pressure is too high or low;
② Throttle valve is adjusted improperly;
③ Controllable cheek valve is adjusted improperly.
Solutions
① Adjust the system pressure;
② Adjust the throttle valve;
③ Adjust the single direction valve.
Q.Pressure cannot be adjusted to higher or pressure fluctuation is too large
A.
Malfunction analyzes
① The overflow valve core is blocked
② Oil filter is blocked.
③ Overflow valve core is blocked
Solutions
① Disconnect & wash or change the overflow valve
② Wash the oil filter.
③ Disassemble and clean the overflow valve core.
As one of the most professional plastic pipe welding machine suppliers, we provide plastic tube cutting machine, pe pipe fusion welding machine, china plastic pipe welding machine and etc. Want to know more? Contact us.
