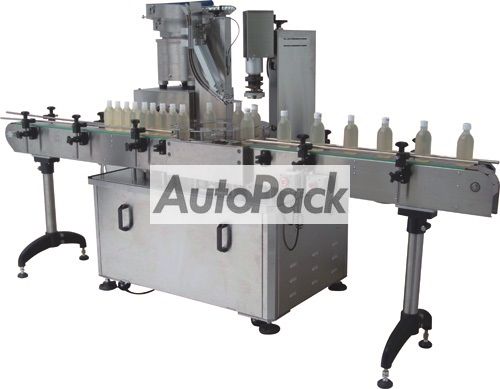

Automatic Rotary Capping Machine CR-435

AutomaticRotary Capping Machine CR-435 is a complete capping system which includes the cap bulk supply, cap orienting and delivery, cap placement and tightening, and container ingress, staging and discharge onto the customer-supplied existing conveyor.

FEATURES:

• Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
• Heavy-duty conveyor by MCC slat top-chain
• No bottle,no cap
• Sophisticated capping module
• Torque capping mechanism ensure no over-capping
• Precise wire cutting capping head, fit to cap with perfection
• Vibratory cap orientation with reject system
• Interchangeable star wheel for different diameter of bottle

OPTIONS:

• Bottle infeed and outfeed accumulation tray
• Customized star wheel for bottle position
• Door-open auto-stop comply with safety operation
• Turnkey linkage with capper, labeler and other in-line systems

SPECIFICATIONS:

• Power: single phase 110/220VAC, 50/60Hz
• Suit for plastic screw or press cap
• Capping speed: 30-40 Bottles/min
• Works with caps from 22mm to 120mm in diameter
• Air requirement: 6kgf/cm2
• Machine Dimensions: (L)2500mm (W)1200mm (H)1600mm
  (For reference only, the real drawing should be considered as final.)
