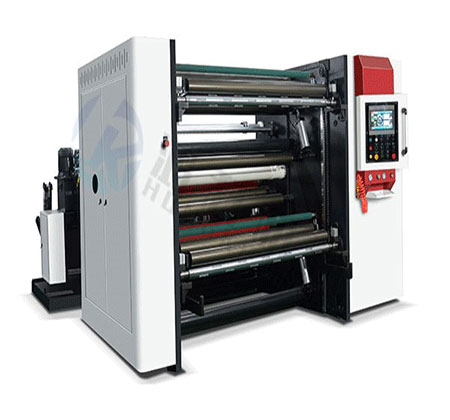

Automatic Slitting Machine

This fully automatic thermal paper slitting machine is suitable for paper, laminates, or film.

Center winding and duplex rewind are available with a thermal paper slitting rewinding machine.

Slitting method: rotary shear/razor blade

Master roll diameter Max.1400mm

Finished roll width Min. 30mm

Rewind diameter Max. 1000mm/1200mm, suitable for large jumbo roll.

If you are interested, contact us to get the thermal paper slitting machine price now!

Features of Automatic thermal paper slitting machine

Unwinding System

1. shaft-less unwinder, 3"and 6"use in common.

2. Hydraulic lifter for heavy jumbo roll, Max diameter 1400mm and Max weight 2t.

3. The left and right arms are controlled by hydraulic and can be moved separately.

4. Tension control by magnetic powder brake

5. Web-guiding system: an ultrasonic sensor to detect the web position

Transmission And Driven System

1. Main servo motor with frequency converter.

2. Synchronous belt transmission.

3. Pneumatic nip rubber roller.

Slitting Section

1. Circular knives 10 pcs

2. Trim disposal: 3kw trim suction fan

Rewinding Section

1. Servo motor 2pcs for rewinding.

2. Auto unloading system(Click here to see video): mechanical arm moving on the linear guide rail to unload the shaft with finished rolls

3. 3-inch air shafts*2, the Max. Diameter is Φ1000

4. Pneumatic lay-on roller guarantees full contact between lay-on roller and slit roll

Electric Section

1. LCD colorful touch-screen and PLC (Siemens).

2. Unwinding tension control and rewinding tension adjustment.

3. Speed adjustment function.
