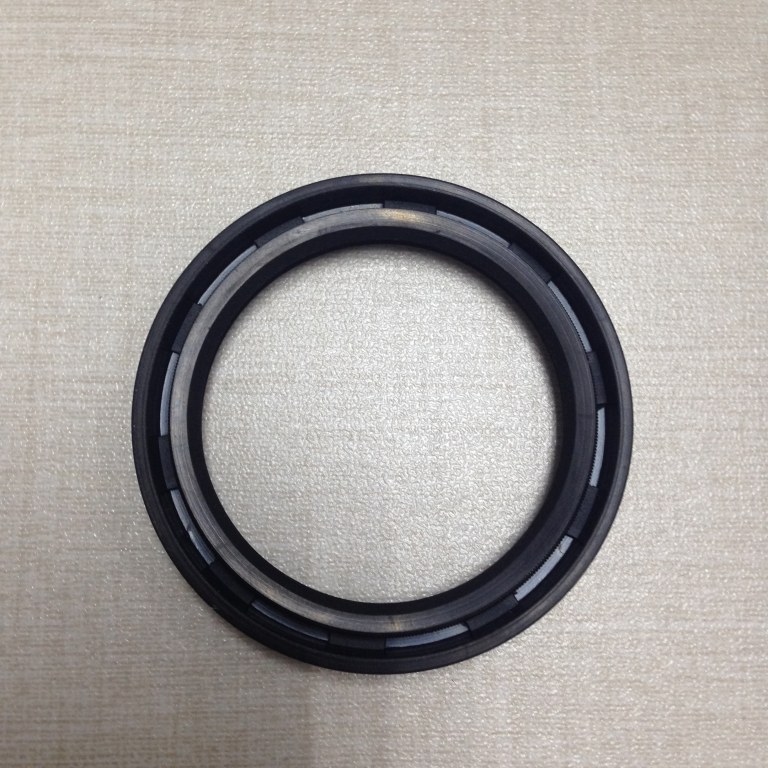

Automatic transmission pump seal with double lips and dust proof
double lips spring nitrile rubber automatic oil seal
is a double lipped rubber coated seal with a metal inner
Available in Nitrile.
The seal construction will consist of a sprung main sealing lip which has a point contact with the shaft. The point contact is formed by two angles, with the air side angle usually less than the oil side angle. Depending on the seal type these two angles are varied to create pressure distribution at the seal contact point which has a steeper slope on the oil side of the seal. The shallower the slope on the oil side of the seal the wetter the seal will run. The spring is positioned such that axially the centerline of the spring is biased to the air side of the lip contact point.
Structure Diagram
Temp -30~200oC, Speed≤30m/s, Pressure≤0.05MPa, Material NBR/FKM+Metal
Product Overviews
Company Information
DSH Seals has 23 years experience in seal industry, is your trusted friend and partner.
DSH SEALS facilities: 2,000 sq. Meters workshop, 1,000 sq. Meters stable temperature/humidity PTFE workshop, CNC machine, NC sinter, automatic high-speed mixer, screening machine, automatic 660T press and exclusive urethane vertical NC lathe (machinery can reach diameter of 1500mm) etc.
DSH SEALS produce macromolecular materials including PTFE, PU and PLASTICS, RUBBER and so on, have already developed the whole series of engineering machinery sealing products, such as SPGO, SPGW, KZT, HBY, etc. Appling in eengineering machinery repair kit of Japanese series, Amenrican Series.
Exhibitor Show
Our Services
We will fulfill your sealing needs with attitude of honest, faithful, pragmatic and innovative, achieve mutual value and bring benefit to society together with you
24 Hours Technical Support
200 Types of material formulations
1000 Kinds of seals selection
1 to 1 Tailored design
Customer field fault analysis
Comprehensive problem solution
