Automatic Voice Coil Winding Machine XT-601S
Détails
Chine (Rép. pop) Pro / B2B
Pro / B2B

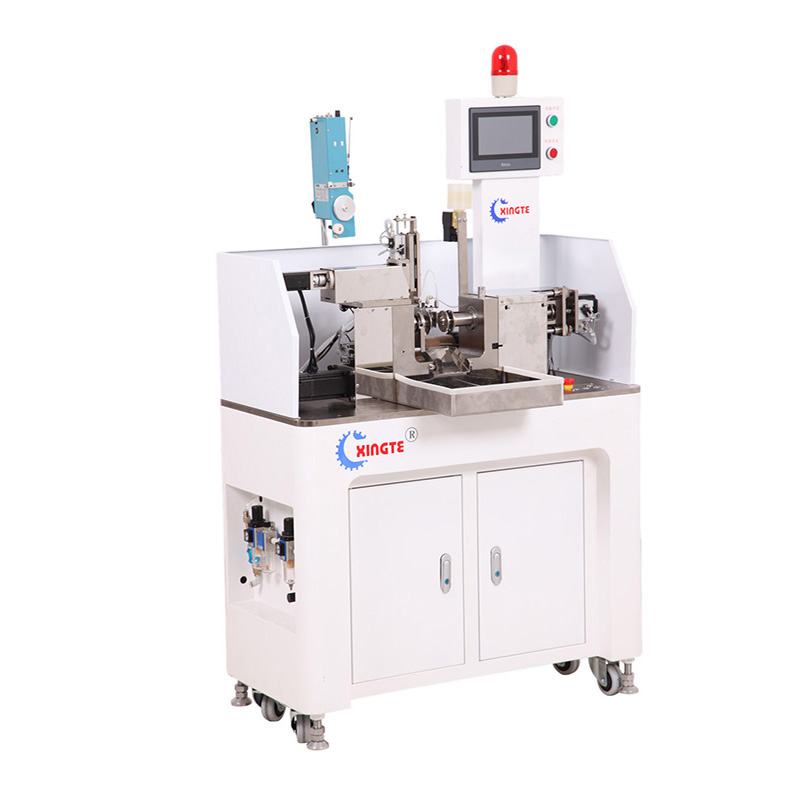

Automatic Voice Coil Winding Machine XT-601S

SPECIFICATIONS

This Machine is applicable for many kinds of bobbinless coil winding including: voice coils(square and racetrack type), laser head coils, hard disk coils, IC card coils, labeling machine coils, read and write card coils, inductor coils, vibrating motor coils, and some other high precision special coils.

Features:

  1. Easy operation and training: Operation interface of touch screen, optimized mechanically.
  2. High precision: special treatment for all metal parts, imported servo motor, bearing and ball screw.
  3. Stability and efficiency: 24 hours stable, compatible with fully automatic production line and unmanned workshop.

Parameters:

Name

XT-601S

Axles

3

Machine size

950(L)×460(W)×1500(H)mm

Spindle speed

≦4000rpm

Weight

260kg

Applicable Wire diameter

0.015-0.6（mm）

Power supply

AC220V±10% single phase 50/60Hz

Coil height

≦25mm

Power consumption

2KW/H

Coil Diameter

￠1～￠50mm

Air pressure

0.4Mpa～0.8Mpa

Lead-out wire position

Programmed

Spindle direction

(Anti)clockwise

Lead-out wire length

40-80mm(Customization available)

Step memory capacity

9999

Wire cutting method

Air-pressure scissor

Operation system

Touch screen + multi axis motion control card

Tensioner

Servo tensioner

Control driver

3 axis servo motor driver

Coil welding method

Fixture preheated / drying curing during winding
Localisation : 3rd Floor, No. 531, Nanpu Road, Shajing Street, Baoan District, Shenzhen, Guangdong, China, 518000 shenzhen,
Personne à contacter : Rocky pan, 8618028700986
