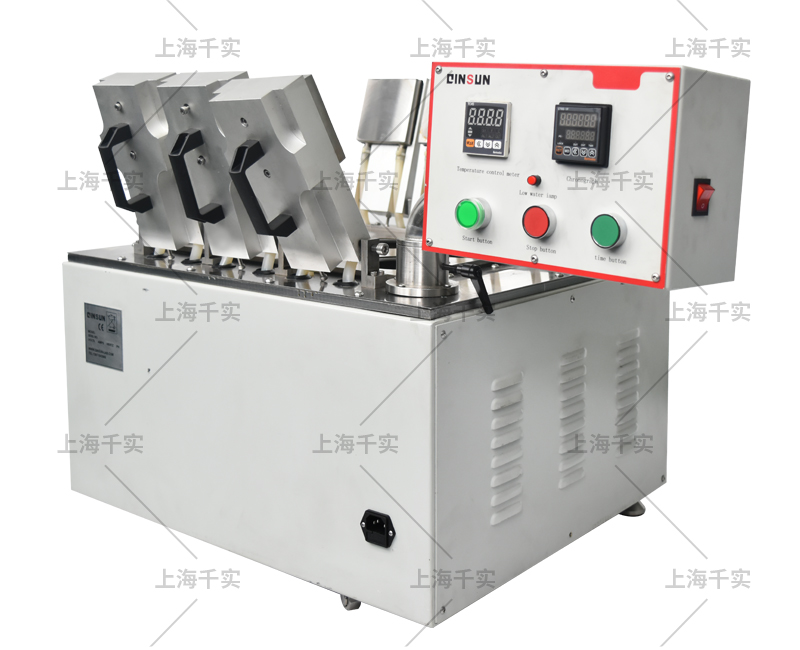

Automotive interiors trim fogging tester
Fogging Tester is applicable in fogging test of automotives' interior decoration materials, that will volatilize under higher temperature
Fogging tester can be used to test the fogging of the xenon lights
Fogging Tester conforms to standards of:
ISO 6452
DIN 75201
SAE J1756
Features:
Fit for laboratory running and low noise
Bath temperature control accuracy can reach 0.1 degree Celsius, creating precise testing Conditions
Easy to operate and safe
Worldwide first class components, stable and reliable
Human friendly design
Working Principle:
The main frame of the tester includes a water sink fully filled with specified ethylene glycol, which can reach a high temperature. At the time of testing, leather specimens are put in the six standard glass containers filled with high temperature liquid, and the stainless steel containers are placed above each glass. Relying on the constant water flow distribution, the temperature can maintain at 20℃ constantly, and it can be adjusted through the regulation device connected to the main frame. This controlled environment condition will generate a layer of “fog” on the surface of specimens. The operator can determine the fogging characteristics of materials based on gravimetric analysis method or refraction method.
Test Methods:
It applies to the following test methods:
1) Gloss Method: the sample cup is heated by the fog evaporated gas condensing on cold glass by glass gloss values were compared before and after condensation and calculated, the sample can be drawn into the fog value.
2) Gravimetric method: the sample cup is heated by the fog evaporated gas condensing on cold aluminum foil, aluminum foil condensed by weighing before and after the change in weight, the sample can be drawn from the atomization - the weight of condensate.
3) Haze method: the sample cup is heated by the fog evaporated gas condensing on cold glass, through the haze value before and after the glass condensate compare and calculate, the sample can be drawn into the fog value.
Standards
DIN 75201 Determination of the fogging characteristics of trim materials in the interior of automobiles
ISO 6452 Rubber or plastics coated fabrics-determination of fogging characteristics of trim materials
in the interior of automobiles
SAE J1756 Test procedure to determine the fogging characteristics of interior automotive materials
QB/T 2728 Leather-physical and mechanical test-determination of fogging characteristics.
BS EN 14288 Leather - Physical and mechanical tests - Determination of fogging characteristics
PV 3920 Determination of fog value (F) of non-metallic interior materials
PV 3015 Non-m
