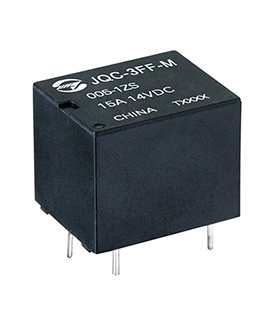

Automotive Time Delay Relay JQC-3FF-M

Contact arrangement

Voltage drop(initial)1)

Max. continuous current2)

Max. switching current3)

Max. switching voltage

Min. contact load

Electrical endurance

Mechanical endurance

Initial insulation resistance

1A, 1C

Typ.: 20mV(at 10A)
Max.: 250mV(at 10A)

10A

15A

30VDC

1A 6VDC

See "CONTACT DATA"

1 x107 ops(300ops/min)

100MΩ (at 500VDC)

Dielectric strength4)

Operate time

Release time5)

Shock resistance6)

Vibration resistance6)

Ambient temperature

Termination

Unit weight

Construction

Between contacts: 750VAC
Between coil & contacts: 1500VAC

Typ.: 5ms
Max.: 10ms (at nomi. vol.)

Typ.: 3ms
Max.: 10ms

98m/s2

10Hz to 55Hz 1.5mm DA

-40C to 85°C

PCB7)

Approx. 10g

Plastic sealed, Flux proofed

Advantages of the JQC-3FF-M auto time delay relay

01

Energy efficiency: The time delay feature can help reduce the energy consumption of the device being controlled, which can lead to better fuel efficiency and a longer battery life.

02

Improved safety: The JQC-3FF-M relay can help prevent short-circuiting or electrical surges, which can be a safety hazard for automotive electrical systems.

03

Versatility: The JQC-3FF-M relay is compatible with a wide range of automotive applications, making it a versatile solution for many different situations.

04

Easy installation: The JQC-3FF-M relay is designed for easy installation, with a compact size and simple wiring connections.

If you are looking for a reliable relay factory, don't hesitate to contact us!
