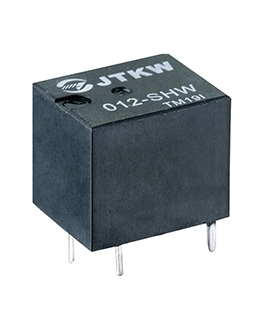

Automotive Time Delay Relay JTKW

Contact arrangement

1A, 1B, 1C

Dielectric strength4)

500VAC

Voltage drop(initial)1)

Typ.: 50mV(at 10A)
Max.: 250mV(at 10A)

Operate time

Max.: 10ms (at nomi. vol.)

Max. continuous current2)

35A(at 23°C, 10min)
25A(at 23°C, 1h)

Release time5)

Max.: 5ms

Max. switching current3)

NO: 35A
NC: 20A

Shock resistance6)

98m/s²

Max. switching voltage

16VDC

Vibration resistance6)

10Hz to 55Hz 1.5mm DA

Min. contact load

1A 6VDC

Ambient temperature

-40°C to 85°C

Electrical endurance

See "CONTACT DATA"

Termination

PCB

Mechanical endurance

1 x107 ops(300ops/min)

Unit weight

Approx. 6g

Initial insulation resistance

100MQ(at 500VDC)

Construction

Plastic sealed, Flux proofed

Advantages of the Jtkw Automotive Time Delay Relay

01

Improved energy efficiency: The 12 volt dc time delay relay automotive feature of the JTKW relay can help reduce the energy consumption of the device being controlled, which can lead to better fuel efficiency and longer battery life.

02

Increased safety: The JTKW relay can help prevent short-circuiting or electrical surges that can damage the vehicle's electrical system or pose a safety hazard.

03

Versatility: The JTKW relay is compatible with a wide range of automotive applications, making it a versatile solution for many different situations.

04

Easy installation: The JTKW relay is designed for easy installation, with a compact size and simple wiring connections.

If you are looking for a reliable relay factory, don't hesitate to contact us!

Localisation : No. 5, Shuntai Road, Yangming Industrial Zone, Yuyao City, Zhejiang CHINA, 315400 Yuyao,
Personne à contacter : zettlernb zettlernb, 0574 62502169
