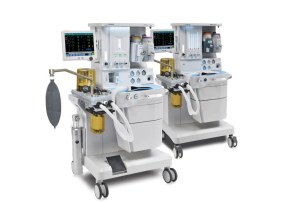

AX Series Anesthesia Machine

AX Series (AX-400, AX-500, AX-600, AX700, AX-800, AX-900) portable anaesthesia machine offers SIMV supports the smooth transition to anesthesia resuscitation, promotes resuscitation efficiency, and reduces lung injury caused by man-machine confrontation. CPAP/PSV supports postoperative respiratory therapy to help patients to wean successfully and reduce the dose of sedatives and muscle relaxants applied.

Key Features of AX Series Anesthesia Machine

PCV, PS+ Apnea ventilation modes provide more flexibility to ventilation strategy, suitable for various patients' operations including pediatric and adult.

Advanced ventilation management, intelligent switch for key parameters in the conversion process of ventilation mode.

Support both low-flow anesthesia and min-flow anesthesia.

Electronic flow-meter, precise control, and convenient operation.

Intraoperative anesthetic gas usage statistics: easy for medical staff to know the cumulative dose of medication

Statistics of soda-lime consumption: early warning of the consumption of soda lime to prevent CO2 retention

Ventilator risk operation reminder: misoperation warning, risk operation prompt check, reduce operation accident.

Shutdown delay: avoid accidental ventilation stop caused by misoperation.

The ascending bellows pneumatic electronic control technology provides a more compact circuit and a smaller loop cavity, which realizes accurate ventilation.

Technical Specifications of AX Series Anesthesia Machine

ANESTHESIA GAS SUPPLY MODULE

Gas supply O2, N2O, AIR; 280j600kPa

Cylinder yokes Optional: O2, N2O, AIR

Fresh gas flow indicator Electronically display and virtual fresh gas flow tubes

Range of fresh gas flow indicators O2, N2O (0~10.0 L/min), AIR (0~12.0L/min) (increments of 0.05)

O2 flush 25~75 L/min

Auxiliary common gas outlet (ACGO) Optional

Anesthetic Gas Scavenging System (AGSS) Optional

Agent Sevoflurane, Halothane, Enflurane, Isoflurane

VENTILATOR OPERATING SPECIFICATIONS

Ventilator Pneumatically driven, Electronically controlled

Ventilator Monitoring & Alarms

Ventilation modes l Manual/Spontaneous

l Volume control (IPPV)

l Pressure control (PCV)

l Pressure Controlled Ventilation Volume Guaranteed (PCV-VG)

l Synchronized Intermittent Mandatory Ventilation in Volume (SIMV-VC)

l Synchronized Intermittent Mandatory Ventilation in Pressure (SIMV-PC)

l Pressure support (PS) with Apnea Backup

Breathing frequency (Freq) 2~100 bpm

Positive end-expiratory pressure (PEEP) OFF, 3~30 cmH2O

Inspiration/expiration ratio (I: E) 4: 1~1: 8

Tidal volume (Vt) 20~1500 ml in Volume Control
