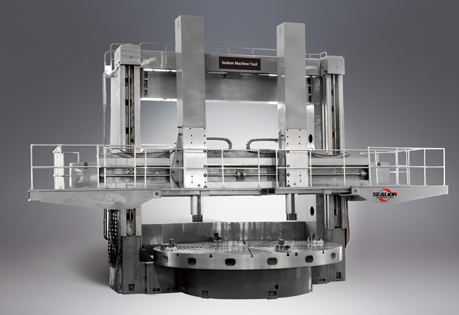

Axis CNC Double Column Vertical Lathe

Axis CNC Double Column Vertical Lathe is compatible with automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose one to match their own processing needs.

Features of 2-Axis CNC Double Column Vertical Lathe

Double column vertical lathe is designed with hydrostatic bearings for better cutting performance. It is equipped with a variety of modern features and is best suited to the manufacturer's processing requirements. The machine is compatible with the automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose to match their own processing needs.

With those models, factory operators can use advanced tools to assist in better processing. The double column vertical lathes are capable of handling different types of tasks to meet a wide range of machining requirements.

The heavy-duty spindle incorporates a high precision hydrostatic bearing designed to withstand high axial and radial loads. In the hydrostatic system, pockets of oil between the base of the machine and the table eliminate contact between mating surfaces and promote friction-free operation. The combination of the high/low motor and 2-speed gearbox provides the benefits of a 3-speed transmission. Power is transmitted through a Class 1 ring and pinion gear that provides a further gear reduction and torque multiplication.

The X and Z axes are a box way design that facilitates heavy-duty machining and high precision. The Turcite B-coated ways are completely enclosed and feature a forced lubrication system. The rigid twin column design and heavy base are best castings, heavily ribbed to minimize thermal distortion and dampen vibration.

We are one of the best cnc machine tools suppliers and cnc machine tool manufacturers,we produce 2 axis cnc lathe machine and cnc machine tools,welcome to order.
