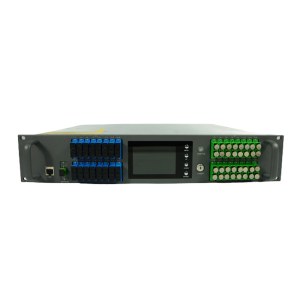

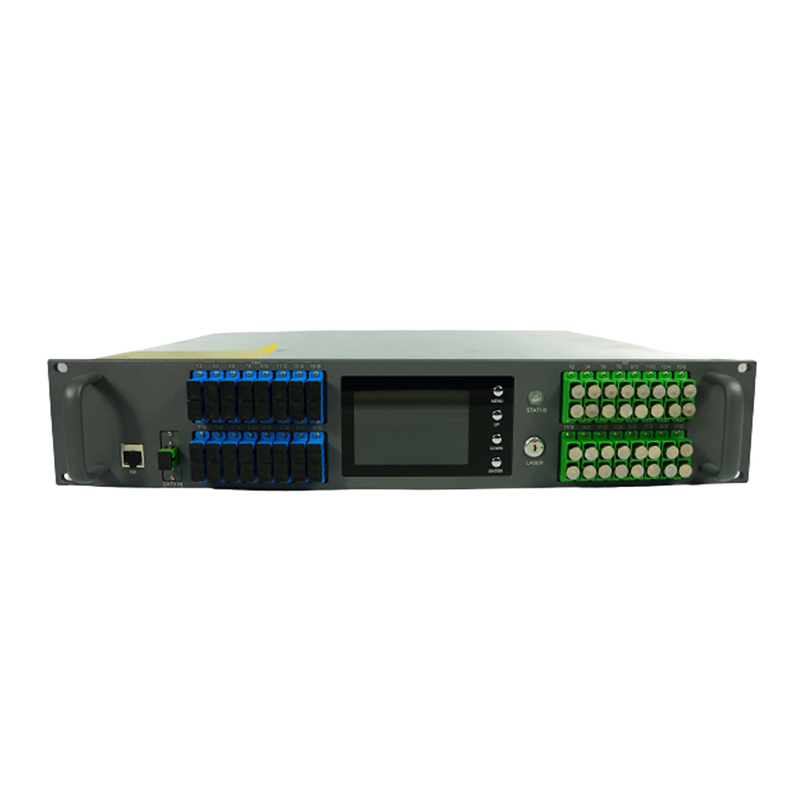

B Type 32 Port EDFA amplifer Fiber Optic Amplifiers (EDFA)
Quantité : 50,000-80, Prix : 8-15 USD
It's a 1550nm 32 port fiber outdoor optical amplifier(EDFA) with 23dbm output power. All installation accessory such as AC or DC power supply, SNMP or switch can be included based on customer requirements.
The body of EDFA transmitter is made of cold rolled steel to protect the inside electric components with gray or black color appearance.
If you have any questions, please consult us.
Specification of B Type 32 Port EDFA amplifer Fiber Optic Amplifiers (EDFA)
|
Items |
Unit |
Parameters |
Remarks |
|
Output Power |
dBm |
33～41 |
16～128 Outputs |
|
Output Power |
mW |
2000～13000 |
16～128 Outputs |
|
Input Power |
dBm |
-3～10 |
|
|
Wavelength |
nm |
1540～1563 |
|
|
Output Power Stability |
dB |
<±0.2</span> |
|
|
Bias Oscillation Sensitivity |
dB |
<0.2</span> |
|
|
Bias Oscillation Dispersion |
PS |
<0.5</span> |
|
|
Optical Return Loss |
dB |
≥45 |
|
|
Fiber Connector |
|
FC/APC、SC/APC |
LC/APC |
|
Noise Ratio |
dB |
<5.0(0dBm optical input)</span> |
0dbm,@1550nm |
|
Connector |
|
RJ45 |
SNMP |
|
Communication interface |
|
RS232、RS485 |
|
|
Power Loss |
W |
50～100 |
Single |
|
Working Voltage |
V |
220VAC(90～265)、 |
-48Vdc |
|
Working Temp |
℃ |
-5～55 |
ATP case |
|
Storage Temp |
℃ |
-20～85 |
|
|
Size |
mm |
483(W)×280(D)×88(H) |
2RU |
Packing And Comments Of B Type 32 Port EDFA amplifer Fiber Optic Amplifiers (EDFA)
|
Package contents |
EDFA device-1 unit; Keys for lock,-1 unit; power cable-1/2 set AC/DC; Laser Module Test Data-1pcs; |
|
Package dimensions(W*H*D) |
67*60*30cm |
|
Package material |
Standard carton for sea shipping or air express |
|
Weight |
13.3kgs |
As a fiber optic products supplier in the world, Tuolima has been operating in the optical communication industry since 2009, mainly fabricating and selling various fiber optic cable and cable fittings, fiber optic splice closures, distribution boxes with all accessories, FTTH transmission equipment. Our goal is to provide domestic and foreign customers with innovative telecommunications equipment and FTTH solutions that meet international standards so as to become one of the most famous and best fiber optic cable manufacturers in the world.
