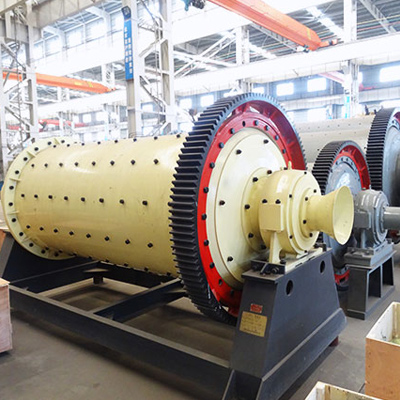

Ball Mill
The Handling Materials and Main Types of Ball Mill:
Ball mill is a key equipment for grinding materials, widely used in powder-making production line such as cement, silicate sand, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
Ball mill can grind various ores and materials with the dry type or wet type. There are two kinds of ball mills, grate type and overfall type due to different ways of discharging material.
The Interior Structure of Ball Mill:
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is in stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet industrial grinding mill for choice.
The Working Principle of Ball Mill:
This machine is a skeleton pattern ball mill with horizontal cylindrical turning gear, drive by outer gear and two hoppers. The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by the barrel and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding.
Model |
Shell rotation speed |
Ball load |
Feeding size |
Discharging size |
Capacity |
Motor power |
Total weight |
Ф900×1800 |
36-38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
Ф900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
Ф1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
Ф1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
Ф1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
Ф1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
Ф1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
22 |
Ф1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
Ф1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
Ф1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
Ф1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
Ф1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
Ф2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
Ф2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
56 |
Ф2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
Ф2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
Ф2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
61 |
Ф2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
Ф2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
Ф2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
58 |
Ф2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
Ф2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
22-80 |
380 |
95 |
Ф2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
26-90 |
