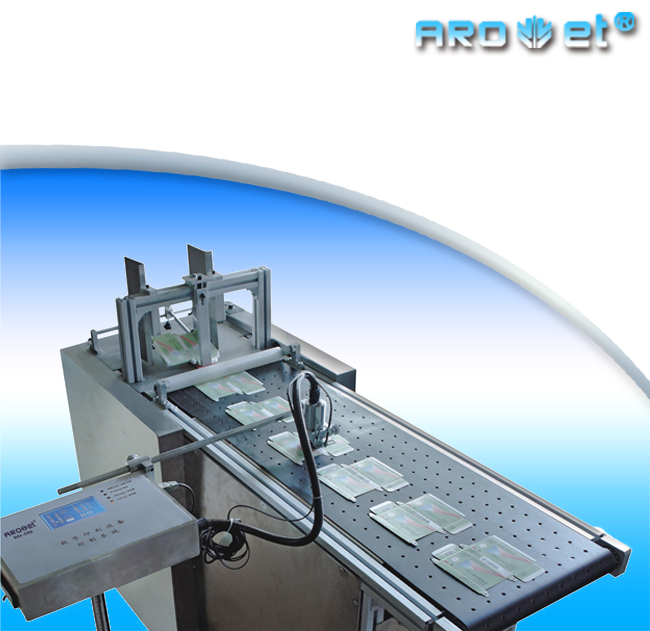

Bar Code Inkjet Printer(Arojet BD-588)

Bar Code Inkjet Printer(Arojet BD-588)

Specification:

Machine type : BD-588 printing precision : 300(DPI) resolution

Printing fonts: computer fonts (entities, dot matrix)

Printing graphics: can print various logo,graphics transmission is not affected by width ratio and the length of any r estrictions.

Printing barcode ：internationally one dimensional and two dimensional bar codes, Drug regulatory cod e.

Bar code grade : A or B grade (depending on material)

Print height: 18mm to 72mm

Printing unit: one to four printing head(can be connected seamlessly printing)

Coding software dedicated printing software

Printing distance: 5mm to 10mm ( between nozzle head and the printed objects )

Database tape: Excel, Access , Csv, txt, jet, etc.

Automatically print: the database, date, time, batch number, class and serial number, etc.

Information storage: determined by the Computers capacity, basically unlimited storing of printing information.

Message length : printing 250 characters per message

Printing speeds: up to 40 meter / minutes, printing effect determined by the material

Ink colors: black, red, white, blue, yellow, etc.

External Interface: USB, encoder, photoelectric eye, upgrade data interface

Environment temperature: 3 ℃ to 30 ℃

Humidity : 10% to 80%

Ink: Using fast dry environmental ink or oil-based ink, no external gas source and dilutions

Dimensions: 34.7 L× 22 W × 10 H cm Weight 12KG

Chassis Material: Stainless Steel

Machine bracket : adjustable up and down 50cm to 75cm, hand to adjust front and back location and precision trimming f unction

Power consumption: The average consumption below 100W AC

Power supply ：AC 220V

Printing materials: metal, plastic, wood, aluminum, carton and building materials and other materials

Status display: printing, encoder, photoelectric eye, the normal status indicator shows
