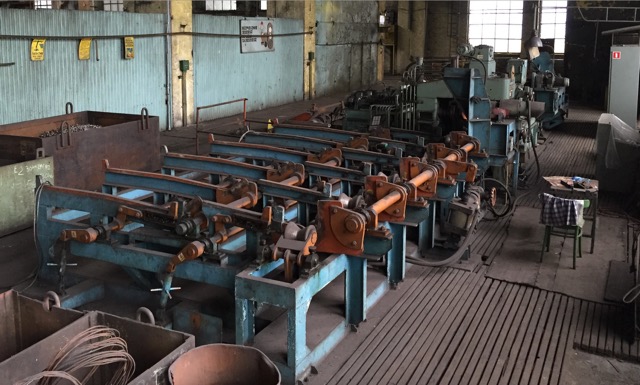

Bar Peeling Machine

Bar Peeling Machine DAISHO

Model: BTH-125 High Speed Centerless Bar to Bar Peeling Machine

YOM: 1985

Materials: Alloy steel round bars

Black Bar diameter: 31 mm Ø to 135 mm Ø

Finished bar diameter: 30 mm Ø to 120 mm Ø

Bar length: 2.350 mm to 5.000 mm

Straightness of black bar: within 3 mm per 1.000 mm length

Stock removal on diameter: 5.0 mm, maximum

Main Spindle speed: 145 r.p.m. to 1.530 r.p.m.

Infinitely variable by DC motor with Thyristor control

system and 2 steps speed reducer in ranging as follows:

Low speed range: 145 r.p.m. to 510 r.p.m.

High speed range: 450 r.p.m. to 1.530 r.p.m.

Cutting speed: 80 meter/min to 120 meter/min

Infinitely variable

Feed speed: 1.0 meter/min to 20.0 meter/min

Infinitely variable by DC motor with Thyristor control system

Cutter head range, required: 30 mm Ø to 85 mm Ø

80 mm Ø to 130 mm Ø

Cutting toll holder assembly: 30 mm Ø to 60 mm Ø

55 mm Ø to 85 mm Ø

80 mm Ø to 110 mm Ø

105 mm Ø to 130 mm Ø

Electric motor power capacity:

Main spindle drive: 90.0 kW

Total power machine required: 146 kW

Dimensions:

Bar throughput center height: 1.000 mm

Total machine height: 2.320 mm

Floor space, required: 4.360 mm Length x 1.500 mm Depth

Weight: Approximately 30,000 Kgs
