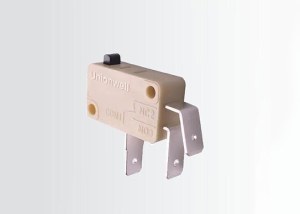

Basic Micro Switch G5H16
Prix : USD0.05~USD3.00
Small operational travel, snap action, excellent sensitivity, and compact configuration
High reliability and long life
Global safety certifications
A selection of terminals
The optional operating force is between 100gf and 400gf.
Wide operational temperature range (-25° C to +150° C),
Complementary PT I grades (175V, 250V, 600V)
Customized selection of levers
Frequently used in power tools, automatic machines, communication equipment, appliances, electronic equipment, and automotive electrics, among other things.
Specifications of Basic Micro Switch G5H16
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Unionwell |
|
Model Number |
G5H16 |
|
Max Operating Force (at pin plunger) |
100gf/200gf/300gf/400gf |
|
Operating Temperature |
-25°C~+150°C |
|
Terminal Type |
Quick Connect/PCB/Solder/Screw/Rast-5/Rast-2.5 |
|
Lever Type |
No Lever/Hinge/Simulated Roller/Roller/Special |
|
Circuit Code |
SPDT/SPST-NO/SPST-NC |
|
Certifications |
ENEC, UL/cUL, CQC |
|
OEM/ODM |
Available |
|
Operating Linear Speed |
0.1~1m/s (up to the actuating method) |
|
Operating Frequency |
Mechanical 60 cycles/min; Electrical 15 cycles/min |
|
Insulation Resistance |
≥100MΩ(500 VDC) |
|
Contact Resistance (Initial Value) |
≤100mΩ |
|
Voltage Resistance |
between terminals |
AC1000V,50/60Hz,1min. |
Between electrified metal parts and housing, and between terminals and unelectrified metal parts |
AC1500V,50/60Hz,1min. |
|
Vibration Durability |
10-55Hz Double amplitude 1.5mm |
|
Shock Resistance |
Destruction: OF>1.0N: 1000m/s2 (approx. 100G) max. |
|
Service Life |
Mechanical |
≥ 10,000,000 cycles or 1,000,000 cycles |
Electrical |
≥50,000 cycles or 100,000 cycles |
|
Unit Net Weight |
Approx. 6.2g (No Lever) |
For more information about spdt kw10 limit micro switch, please feel free to contact us!
There are many micro switch suppliers, but we are one of the best choices for you.
Personne à contacter : wellgz union, 86 20 87713867
