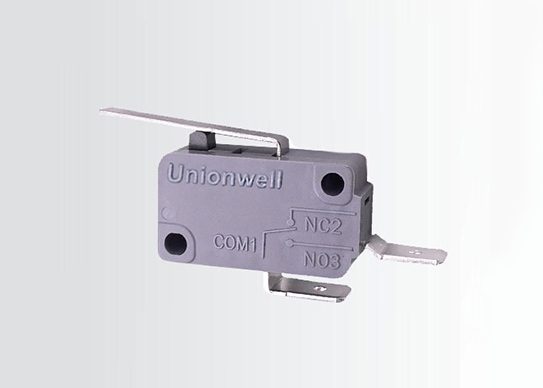

Basic Micro Switch G5T26
Basic Micro Switch China G5T26
Compact configuration, small contact gap, snap action, high sensitivity, and small operating travel
Long life, high reliability
Global safety approvals
Variety of terminals.
Optional operating force varies from 200gf to 400gf
Wide range of operating temperatures (-25° C~+125° C)
With optional PT I grades (175V, 250V, 600V)
Variety of levers
Widely used in appliances, electronic equipment, automatic machines, communication equipment, car electrics, apparatus and instruments, power tools, etc.
Specifications of gas club car micro switch G5T26
Place of Origin |
Guangdong, China (Mainland) |
|
Brand Name |
Unionwell |
|
Model Number |
G5T26 |
|
Max Operating Force (at pin plunger) |
200gf/300gf/400gf |
|
Operating Temperature |
-25°C~+125°C |
|
Terminal Type |
Quick Connect/PCB/Solder/Screw/Rast-5/Rast-2.5 |
|
Lever Type |
No Lever/Hinge/Simulated Roller/Roller/Special |
|
Circuit Code |
SPDT/SPST-NO/SPST-NC |
|
Certifications |
ENEC, UL/cUL, CQC |
|
OEM/ODM |
Available |
|
Operating Linear Speed |
0.1~1m/s (up to the actuating method) |
|
Operating Frequency |
Mechanical 60 cycles/min; Electrical 15 cycles/min |
|
Insulation Resistance |
≥100MΩ(500 VDC) |
|
Contact Resistance (Initial Value) |
≤100mΩ |
|
Voltage Resistance |
between terminals |
AC1000V,50/60Hz,1min. |
Between electrified metal parts and housing, and between terminals and unelectrified metal parts |
AC1500V,50/60Hz,1min. |
|
Vibration Durability |
10-55Hz Double amplitude 1.5mm |
|
Shock Resistance |
Destruction: OF>1.0N: 1000m/s2 (approx. 100G) max. |
|
Service Life |
Mechanical |
≥ 10,000,000 cycles or 1,000,000 cycles |
Electrical |
≥50,000 cycles or 100,000 cycles |
|
Unit Net Weight |
Approx. 6.2g (No Lever) |
If you want to know more details of club car precedent micro switch location and club car ds micro switch wiring , please visit our website.
As a micro switch manufacturer, we can offer different kinds of related products for sale, anything you need, please contact us.
