Bead Wire
Quantité : AS PER ORD

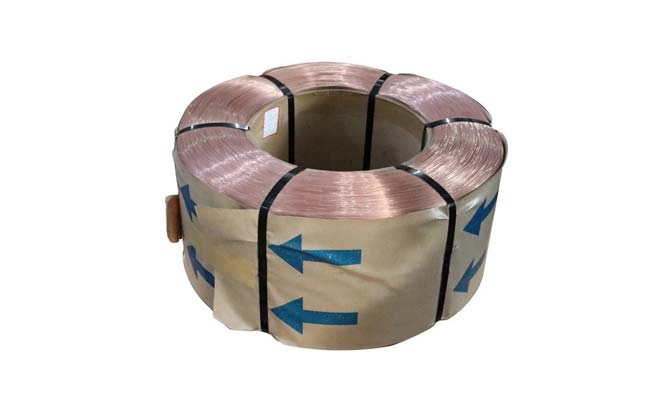

Bead Wire, is a kind of steel wire plated with bronze, copper or brass as reinforcement of bead on Tyres. The Bead ring woven by the bead wire and the insulating rubber makes the outer tire tightly and firmly fixed on the tire rim, and bears the forces of tension, compression, torsion and centrifugal force during car driving.
As one of bead wire manufacturers and bead wire suppliers, Yusheng's bead wire material has high tensile strength, high toughness, good fatigue resistance, remarkable adhesion to rubber.
Specification of Bead Wire
diameter (mm) |
tolerance (mm) |
tensile strength (Mpa) |
breaking force (N) |
elongation (%) |
torsion (T/360°) |
yield ratio (%) |
straightness (mm/3m) |
0.8 |
0.02 |
≥1900 |
≥955 |
≥5 |
≥50, L=200d |
≥80 |
≤600 |
0.89 |
0.02 |
≥1900 |
≥1182 |
≥5 |
≥50, L=200d |
≥80 |
≤600 |
0.02 |
≥2150 |
≥1338 |
≥5 |
≥50, L=200d |
≥85 |
≤600 |
|
0.955 |
0.02 |
≥1850 |
≥1326 |
≥5 |
≥50, L=200d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥1469 |
≥5 |
≥50, L=200d |
≥85 |
≤600 |
|
0.96 |
0.02 |
≥1850 |
≥1340 |
≥5 |
≥50, L=200d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥1484 |
≥5 |
≥50, L=200d |
≥85 |
≤600 |
|
1 |
0.02 |
≥1850 |
≥1453 |
≥5 |
≥25, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥1611 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
1.2 |
0.02 |
≥1850 |
≥2093 |
≥5 |
≥25, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥2319 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
1.26 |
0.02 |
≥1894 |
≥2360 |
≥5 |
≥40, L=200mm |
≥85 |
≤600 |
0.02 |
≥2202 |
≥2744 |
≥7 |
≥40, L=200mm |
≥90 |
≤600 |
|
1.295 |
0.02 |
≥1750 |
≥2305 |
≥5 |
≥25, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥2701 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
1.3 |
0.02 |
≥1750 |
≥2323 |
≥5 |
≥22, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥2721 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
1.55 |
0.02 |
≥1750 |
≥3303 |
≥5 |
≥20, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥3869 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
0.02 |
≥2350 |
≥4432 |
≥5 |
≥20, L=200d |
≥90 |
≤600 |
|
1.65 |
0.02 |
≥1750 |
≥3742 |
≥5 |
≥20, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥4384 |
≥5 |
≥20, L=100d |
≥85 |
≤600 |
|
1.83 |
0.02 |
≥1500 |
≥3946 |
≥5 |
≥20, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥5392 |
≥5 |
≥15, L=100d |
≥85 |
≤600 |
|
0.03 |
≥2250 |
≥5915 |
≥5 |
≥15, L=200d |
≥90 |
≤600 |
|
2 |
0.02 |
≥1500 |
≥4713 |
≥5 |
≥20, L=100d |
≥80 |
≤600 |
0.02 |
≥2050 |
≥6441 |
≥5 |
≥15, L=100d |
≥85 |
≤600 |
Application of Bead Wire
Bead wire acting as an important reinforcement materials, are used in various types of tires including truck tires, radial tires, passenger car tires, motorcycle tires and bicycle tires.
As a rubber raw material manufacturer, we can provide kinds of rubber raw materials for sale, anything you need, please contact us.
