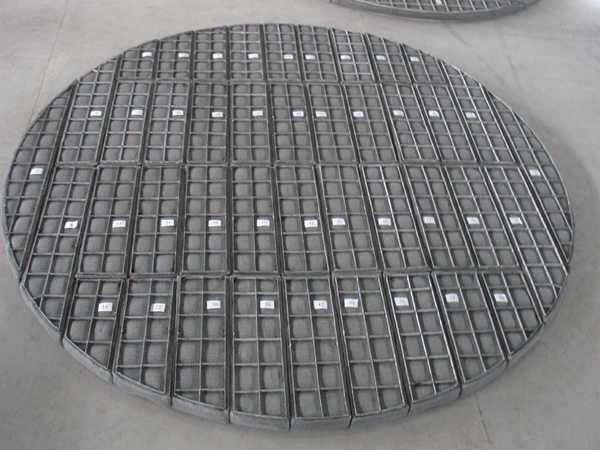

Becoil 954 demister pad

The demister collect essentially 100% of all liquid particles 2 to 5 microns in diameter, depending on design parameters.
The demister is an assembly of yorkmesh knitted mesh supported on, and held down by, high open area grids. when a vapor steam carrying entrained liquid droplets passes through a demister pad, the vapor moves freely through the yorkmesh knitted mesh but the inertia of the droplets causes them to contact the wire surfaces, coalesce, and ultimately drain as large droplets.
Available in virtually any size or shape, in a broad range of metals or plastics, individual styles of demister mist eliminators can be supplied to meet specific customer needs. Material: SS304,SS304L,SS316,SS316L,SS321,SS904L,SS317,SS317L,PTFE(F4),PEP(F46), PP,PE,PVC,PVDF,NO2200,NO2201 TA2,TA10,Monel400,N2,N4,N6,N8,Incoloy 800,Incoloy 825,Incoloy 800H,Incoloy 800HT,Incoloy 926,Inconel 625,Inconel 601,Inconel 600,Inconel 718,InconelX-750,Hastelloy Alloy B,Hastelloy Alloy C,Hastelloy Alloy C-22,Hastelloy Alloy C-276,Hastelloy Alloy B-2.
