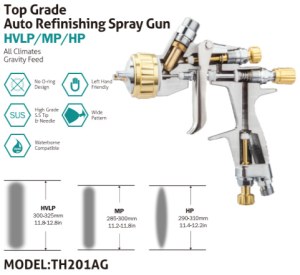

BEST AUTO PAINT SPRAY GUN KIT TH201AG

Atomization Technology

HVLP

MP

HP

Model

TH201AG

Nozzle Range

1.0-2.5mm

Pattern(1.3mm)

300-325mm

285-300mm

290-310mm

11.8-12.8im

11.2-11.8in

11.4-12.2in

Recommended Air Inlet Pressure

1.8bar

2bar

2bar

26psi

29psi

29psi

Air Consumption

465l/min

350l/min

275l/min

16.4cfm

12.4cfm

9.7cfm

Air Inlet

G/NPT 1/4"

Cup

600ml plastic

Weight(Gun Only)

492g

Material

Body

Aluminium

Die-casted

Air Cap

Special Selected Brass

Nozzle/Fluid Tip

High Grade Stainless Steel

Needle

High Grade Stainless Steel

Model

Type of feed

Nozzle

Spray pattern

Fluid output

Air consumption

Air pressure

Cup volume

mm

mm

ml/min

NL/min

bar

ml

TH201AG

Gravity

φ1.2(HVLP)

230

160-190

460

1.75

600

φ1.3(MVMP)

260

170-200

360

2

φ1.4(LVHP)

270

160-190

270

2

No.

Description

Qty

No.

Description

Qty

No

Description

Qty

No。

Description

Qty

1

Gun

1

13

Needle packing screw

1

25

Front end sealing ring

1

37

Spray pattem adjust knob

1

body

2

Air separation ring gasket

1

14

Retainer 2.5

2

26

Air valve washer

1

38

Cross hesd screw

1

3

Locking ring gasket

1

15

Air adjust

1

27

Needle plug sleeve

1

39

Air separation connector

1

4

Air separation ring

1

16

Retainer 6

2

28

Air valve spring

1

40

Cup connector

1

5

Air separation locating pin

1

17

Air adjust adapter

2

29

Needle adjust adapter screw

1

41

Strainer

1

6

Air separation ring cover

1

18

Gland seal

2

30

Back end sealing ring

1

42

Cup

1

7

Nozzle

1

19

Air adjust knob

1

31

Needle adjust adapter

1

Accessories

8

Retainer

1

20

G1/4(A)joint

1

32

Needle

1

9

Air cap

1

21

Trigger

5

33

Needle adjust spring

1

43

Multipurpose spanner

1

10

Washer for air cap

1

22

Trigger pin

1

34

Needle adjust adapter

1

44

Brush A

1

11

Locking ring

1

23

Retainer 4

2

35

Needle adjust knob

1

45

Male plug

1

12

Needle packing gasket

1

24

Washer

1

36

Washer

1
