BEST MINI HVLP SPRAY GUN TH102AG
Top coating & general purpose
Gravity feed
No o-ring design
Unique dual-color ring & knobs
High-grade S.S tip & needle
- finger trigger
Product reviewZEGO provides the best automotive spray gun , and the customers will select their suitable tools for work. Best mini hvlp china spray gun TH102AG has a gravity feed. With no o-ring design and a unique dual-color ring and knobs, it can be used for top coating and general purpose. Besides, this type of spray gun mini hvlp has high-grade S.S tip and needle, 2-finger trigger, which can be easily handled and controlled.

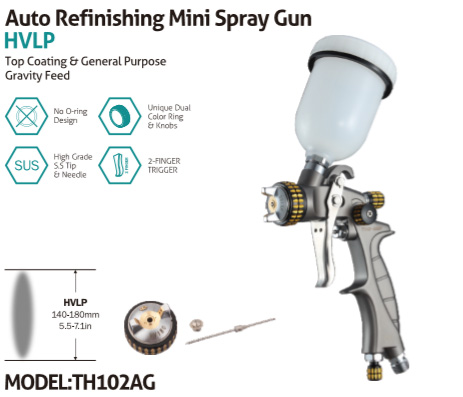

Auto Refinishing Mini Spray Gun HVLP TH102AG
Atomization Technology |
HVLP |
|
Model |
TH102AG |
|
Nozzle Range |
0.5-1.2mm |
|
Pattern(1.3mm) |
140-180mm |
|
5.5-7.1in |
||
Recommended Air Inlet Pressure |
1.5bar |
|
22psi |
||
Air Consumption |
200l/min |
|
7cfm |
||
Air Inlet |
G/NPT 1/4" |
|
Cup |
100ml |
|
Weight(Gun Only) |
322g |
|
Material |
Body |
Aluminium |
Air Cap |
Special Selected Brass |
|
Nozzle/Fluid Tip |
High Grade Stainless Steel |
|
Needle |
High Grade Stainless Steel |
Specifications of Best Mini HVLP Spray Gun TH102AG
Model |
Type of feed |
Nozzle |
Spray pattern |
Fluid output |
Air consumption |
Air pressure |
Cup volume |
mm |
mm |
ml/min |
NL/min |
MPa |
ml |
||
TH102AG |
Gravity |
φ0.5 |
90-130 |
20 |
200 |
0.15-0.2 |
100 |
φ0.8 |
140-180 |
30 |
|||||
φ1.0 |
50 |
||||||
φ1.2 |
70 |
Parts List of Best Mini HVLP Spray Gun TH102AG
No. |
Description |
Qty |
No. |
Description |
Qty |
No. |
Description |
Qty |
No. |
Description |
Qty |
1 |
Gun body |
1 |
15 |
Air valve spring |
1 |
29 |
Hinge pin |
1 |
43 |
Cup adapte |
1 |
2 |
Needle packing screw washer |
1 |
16 |
Air valve spindle |
1 |
30 |
Washer |
1 |
44 |
Strainer |
1 |
3 |
Needle packing spring |
1 |
17 |
Air valve washer |
1 |
31 |
Gasket |
1 |
45 |
Cup |
1 |
4 |
Needle packing washer |
1 |
18 |
Air valve |
1 |
32 |
Retainer 3 |
1 |
|
||
|
|||||||||||
5 |
Needle packing gasket |
1 |
19 |
Air valve seat |
1 |
33 |
Spray pattern adjust adapter |
1 |
Accessories |
||
6 |
Needle packing screw |
1 |
20 |
Sealing screw |
1 |
34 |
Spray pattern adjust lever |
1 |
46 |
Multipurpose spanner |
1 |
7 |
Air baffle |
1 |
21 |
Retainer 4 |
5 |
35 |
Washer |
|
47 |
Brush A |
1 |
8 |
Washer for nozzle seat |
1 |
22 |
Air adjust adpter |
1 |
36 |
Spray pattern adjust knob |
1 |
48 |
Male plug |
1 |
9 |
Nozzle seat |
1 |
23 |
Air adjust knob |
1 |
37 |
Cross head screw |
1 |
|
|
|
10 |
Nozzle |
1 |
24 |
Gland seal |
1 |
38 |
Needle adjust adapter |
1 |
|
|
|
11 |
Air cap |
1 |
25 |
M12X1 joint |
1 |
39 |
Needle |
1 |
|
|
|
12 |
Washer for air cap |
1 |
26 |
Washer |
1 |
40 |
Needle adjust spring |
1 |
|
|
|
13 |
Locking ring |
1 |
27 |
Trigger |
1 |
41 |
Spring plug |
1 |
|
|
|
14 |
Retainer |
1 |
28 |
Trigger pin |
1 |
42 |
Needle adjust knob |
1 |
|
|
|
Patented cup liner for smooth material delivery
Specially for metal flakes and high solid paints
2.0mm special nozzle setup
As a spray gun factory, we will provide more high quality products for sale, if you have needs, please contact us.
