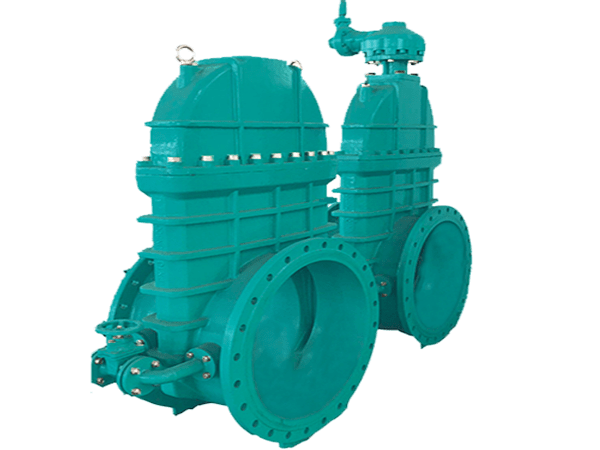

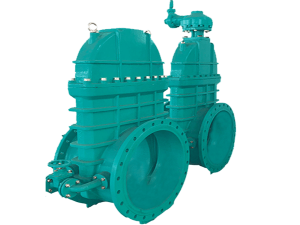

Big Size Resilient Gate Valve
Quantité : 1pc Prix : US $1 - 3,000 / Set
Basic information of the big size gate valve
This valve is used in the pipeline as a cut-off valve.
Features
1. High-quality EPDM brake rubber provides good sealing performance;
2. The bronze brake nut is not easy to damage even if the switch torque is too high;
3. Light switch torque, easy to operate;
4. The shell material is guaranteed, safe and reliable.
Principle
The big size resilient gate valve is equipped with a turbine head due to excessive torque, which drives the rotary stem through the turbine. The stem drives the brake plate nut upward to open the valve.
Installation and Commissioning
Electric actuators are available for more convenient operation of valves. For specific use, please consult ZECO Valve Group.
Product scope, Standards & Materials
Size Range: 20"~32"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
ZECO is one of the most professional china check valve manufacturers , and we have been devoted to produce control valve china for many years. If you want to know more details or want a quotation, just feel free to contact us!
