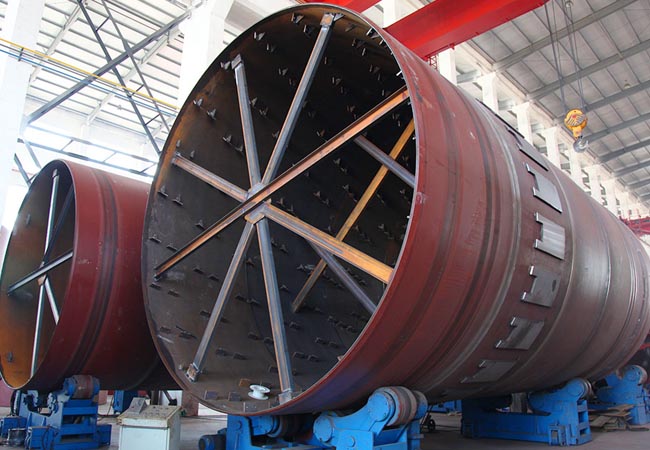

Binocular Rotary Dryer

Quantité : 1   Prix : 2000USD

The electric rotary dryer has made a great breakthrough and innovation on the basis of the traditional single drum rotary dryer structure.

1. The binocular rotary dryer has high thermal efficiency and remarkable energy-saving effect.

2. Material exchanges heat between the inner cylinder and heat flow in the form of radiation, convection, and conduction, while heat exchanges in the outer cylinder are combined in the form of conduction and convection.

3. The length of the machine is shortened, which is conducive to the process layout. The length of the whole machine is about 40% shorter than that of the single drum dryer, which reduces the building area of the plant and saves the project investment.

4. Design of various lifting boards to make the exchange of materials and hot flue gas more fully.

Technical parameters of The binocular rotary dryer:

Project

m

Ф2.0×7m

Ф2.5×7.5m

Ф3.2×8m

Ф3.6×8.5m

Ф4.2×9m

Unit

Specifications

Outer barrel diameter

m

2

2.5

3.2

3.6

4.2

Outer cylinder length

m

7

7.5

8

8.5

9

Volume of cylinder

m3

21.98

36.8

64.3

86.48

124.6

Cylinder rotation speed

rpm

4-10

4-10

4-10

4-10

4-10

Initial moisture of materials

%

8-20

8-20

8-20

8-20

8-20

Material final moisture

%

≤1

≤1

≤1

≤1

≤1

Maximum intake temperature

℃

750-900℃

750-900℃

750-900℃

750-900℃

750-900℃

Throughput

T/h

slag

12-18

22-25

30-38

40-48

55-65

fly ash

8-10

15-20

25-30

35-40

40-50

coal

8-10

13-18

23-28

33-38

40-45

Yellow sand

15-20

23-28

35-43

40-50

60-70

Type of motor

Yr160m-4

Yr132m-4E

Yr132m-4E

Yr160m-4E

Yr160m-4E

Motor power

kw

5.5×2

7.5×2

7.5×4

11×4

15×4

Reducer Model

XWD-6

XWD-6

XWD-6

XWD-6

XWD-6

Speed ratio of reducer

I

23-29

23-29

23-29

23-29
